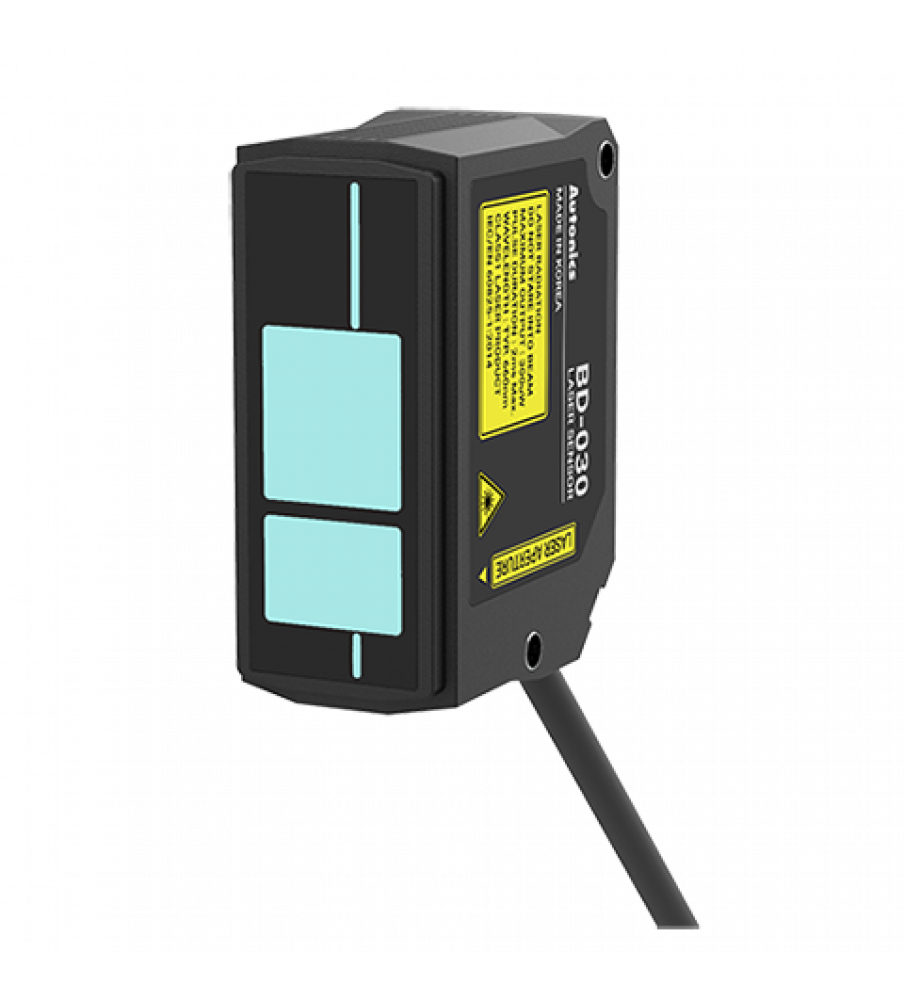

Data sheet?
| Spot diameter | Near(25mm): Approx. 290?790 ??br>Reference(30mm): Approx. 240?660 ??br>Far(35mm): Approx. 190?450 ??/td> |
|---|---|
| Resolution | 1??/td> |
| Reference distance | 30mm |
| Max. measurement range | 20 to 40mm |
| Linearity | 0.1% F.S. (in 25 to 35mm) |
| Temperature Characteristics | 0.05% F.S./??/td> |
| Power supply | Using power from the amplifier unit. |
| Light source | Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) |
| Light Source_Optical method | Diffuse reflection |
| Light Source_Laser class | Class 1 (IEC/EN) |
| Light Source_Output | Max. 300??/td> |
| Operation indicator | Power indicator: red LED, Laser emission indicator: green LED, NEAR/FAR indicator: green LED |
| Connection method | Connector type |
| Insulation resistance | Over 20M??(at 500VDC megger) |
| Noise immunity | Square shaped noise by noise simulator (pulse width: 1?? cycle: 10ms) ?500V |
| Dielectric strength | 1,000VAC 50/60Hz for 1 minute |
| Vibration | 1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Shock | 300m/s? (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination | Max. Incandescent lamp 10,000 lx |
| Environment_Ambient temperature | -10 to 50?? storage: -15 to 60??/td> |
| Environment_Ambient humidity | Under 85%RH, storage: under 85%RH |
| Protection structure | except connector of extension cable) |
| Material | Case: Polycarbonate, Sensing part: Glass, Cable: Polyvinyl chloride |
| Amplifier unit compatibility | BD Series amplifier unit: 1 |
| Accessories | Ferrite core (made by TDK co. ZCAT2132-1130), Mounting bracket, Bolt, Nut |
| Approval |   |
| Weight | Approx. 209g (approx. 56g) |
Tags: Sensor, Laser Displacement Sensor, Sensor head, Reference distance 30mm(Max.20-40mm), Cable connecter type, (req. Extension cable CID6P series)
