AiC-D-60MA-EC

AiC-D-60MA-EC

0 reviews Write a review
  • Brand: Autonics
  • Product Code:
  • Availability: 0

  • $722.00

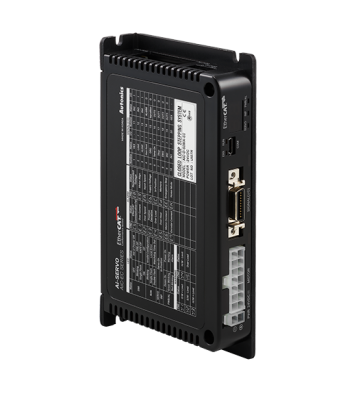

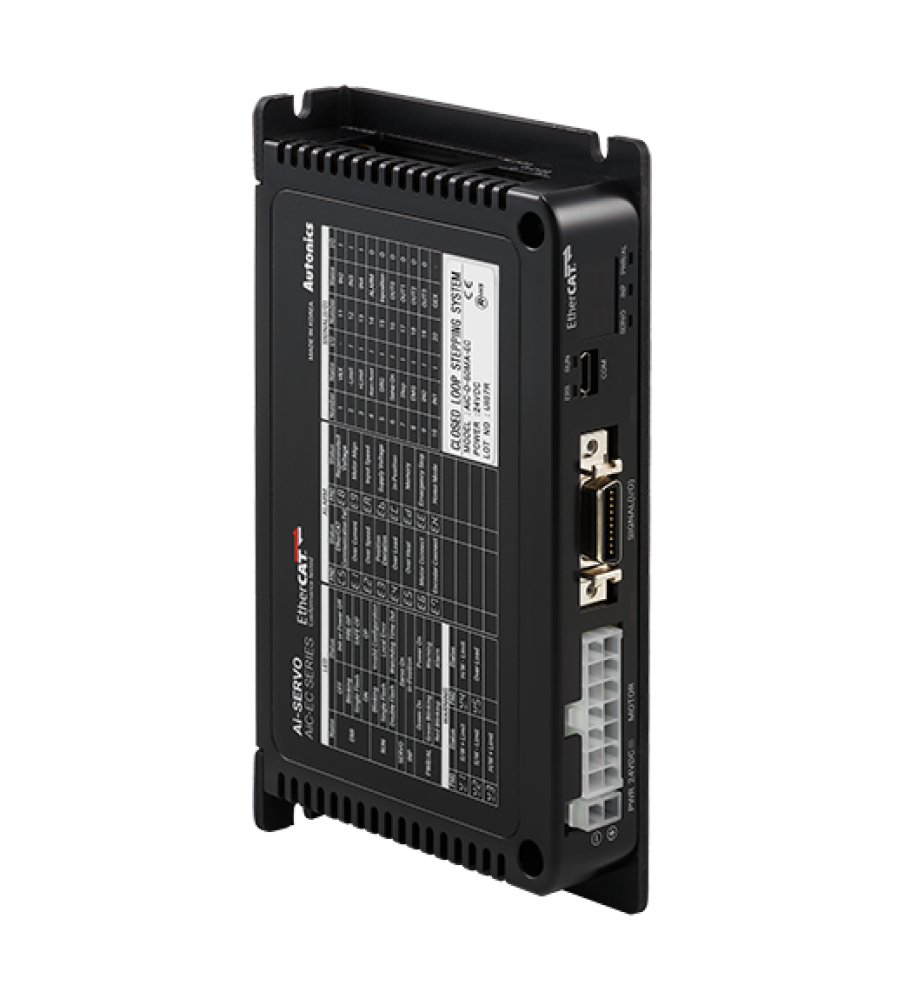

EtherCAT 2Phase Closed-loop Stepper Driver, 3.5A/Phase, 24VDC, ( Req. Ai-M-60MA-V2 Motor )

Data sheet

Driver_Applied MotorFrame size 60mm 2-phase closed loop stepper motor
Driver_Resolution500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(factory default) PPR
Driver_Power supply24VDC?
Driver_Max. Run Current3.5A/Phase
Driver_Max. Power consumption240W
Driver_Protection structureIP20(IEC standard)
Driver_Approval??
Motor_Environment_Ambient temperature0 to 50?? storage: -10 to 60??/td>
Motor_Environment_Ambient humidity 35 to 85%RH, storage: 10 to 90%RH
Motor_Weight??350 g (??500 g)
Motion Devices
Driver_Applied Motor Frame size 60mm 2-phase closed loop stepper motor
Driver_Resolution 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(factory default) PPR
Driver_Power supply 24VDC
Driver_Max. Run Current 3.5A/Phase
Driver_Max. Power consumption 240W
