| Driver_Operation Method | Bipolar constant current Drive |
|---|---|
| Driver_Applied Motor | Frame size 60mm, shaft type, built-in brake type 2-phase closed-loop stepper motor(Ai-M-60MA-B) |
| Driver_Resolution | 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(SW2) |
| Driver_Power supply | 24VDC @(=) |
| Driver_Max. Run Current | 3.5A/Phase |
| Driver_Max. Power consumption | 240W |
| Driver_Output | In-Position, Alarm, Warning, Compare 1 / 2, general output (OUT0 to 8) |
| Driver_Protection structure | IP20 |
| Driver_Environment_Ambient temperature | 0 to 50?? storage: -10 to 60??/td> |
| Driver_Environment_Ambient humidity | 35 to 85%RH, storage: 10 to 90%RH |
| Driver_Weight | Approx. 460g(approx. 300g) |
| Operation mode | INDEX, PROGRAM, JOG, CONTINUOUS |
| Communication type | RS485 |
| Communication Protocol | Modbus RTU |
| Applied Library | C programming language(provided DLL) |

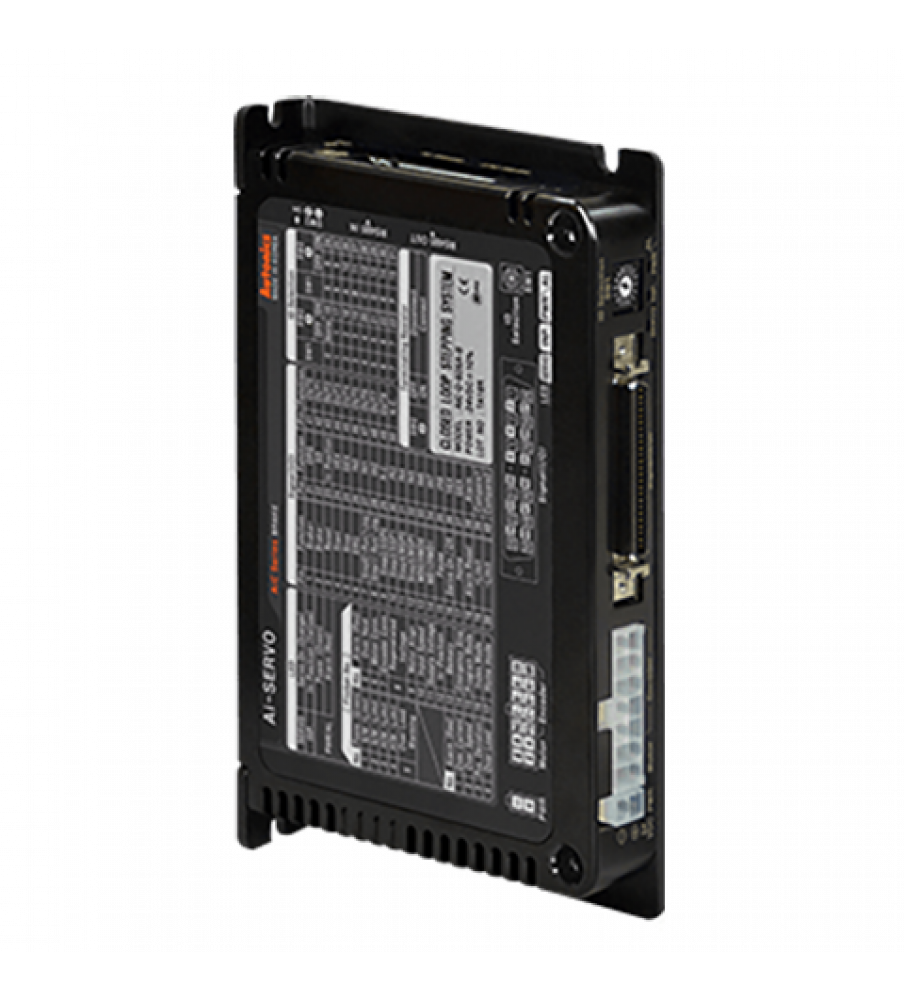

Tags: Controller-Intergrated 2-Phase Closed-Loop Stepper Motor Driver, 3.5A/Phase, Built-in brake, 24VDC, ( Req. Ai-M-60MA-B Motor )
