| Basic Step Angle [FULL/HALF] | 1.8?/0.9? |
|---|---|
| Max. holding torque | 28.56kgf.cm |
| Motor_Applied Driver | Frame size 60mm AC type 2-phase closed-loop stepper motor driver |
| Rotor Moment Of Inertia | 1,100g?cm? |
| Winding Resistance | 2.3? |
| Rated current | 2A/Phase |
| Motor length | 94.9mm |
| Shaft type | Single shaft |
| Operation method | Bipolar constant current Drive |
| Resolution | 10,000PPR(2,500PPR?4-multiply) |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Max. response frequency | 300kHz |
| Protection structure | IP30 |
| Approval | @(CE) |
| Motor phase | 2-Phase |
| Environment_Ambient temperature | 0 to 50?? storage: -20 to 70??/td> |
| Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Weight | Approx. 2.00kg(approx. 1.70kg) |

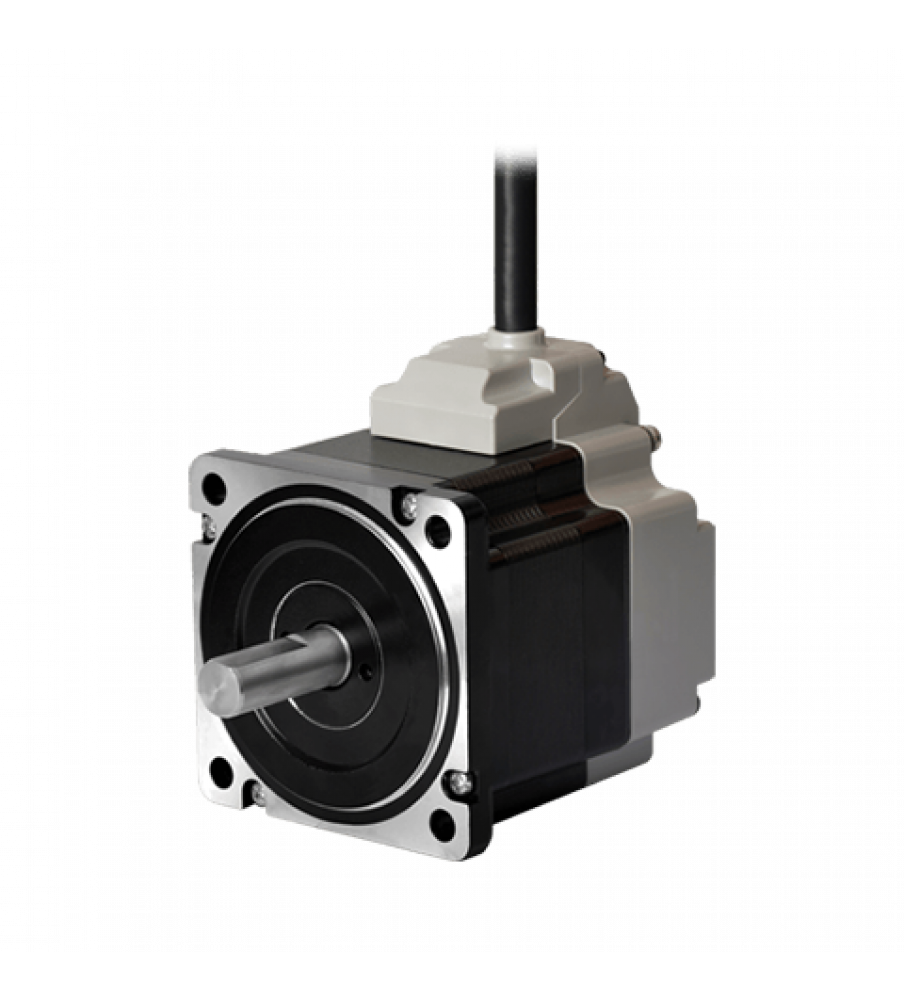

Tags: 2-Phase Closed-Loop Stepper Motor, 86mm Square, Torque 28.56kgf.cm(2.8N.m), 2.0A/Phase, for AiCA-D-86MA
