| Contact block_Electrical specification_Power voltage/current | 250VAC~/3A |
|---|---|
| LED block_Power supply | 24VDC @(=) |
| Protection structure | IP65(IEC standard) |
| Approval | @(KC) @(CE)(IEC-60947-5-1) @(CULUS)(LED blocks are except @(KC) certifications) |
| Weight_Body | Approx. 3.8g |
| Weight_Housing | Approx. 1.4g |
| Weight_Contact block | Approx. 1.6g |
| Weight_LED block | Approx. 1.9g |
| Operation type | Returned(illuminated) |
| Color | Blue |
| Contact block | C contact: 2 |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |

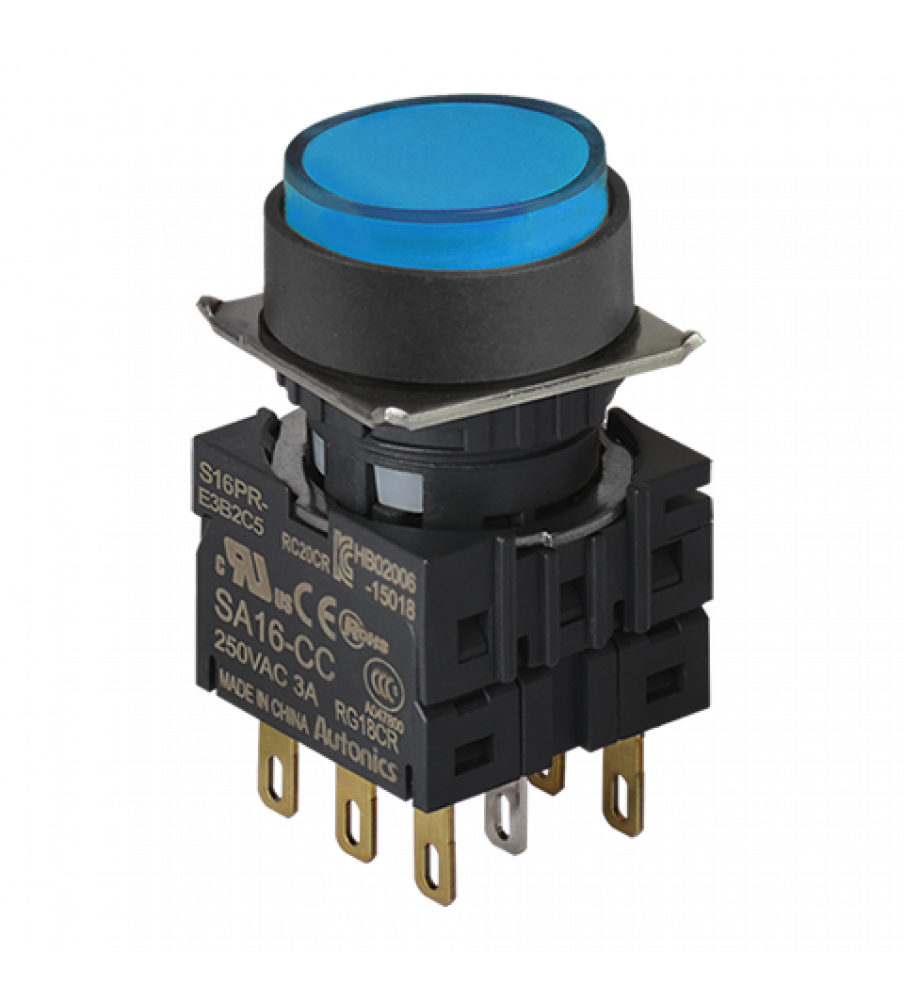

Tags: Push Button ?16 Round Type, Extended, Illuminated Returned, Blue, 2 Normal Open Normal Close Contacts, 24 VDC LED Block
