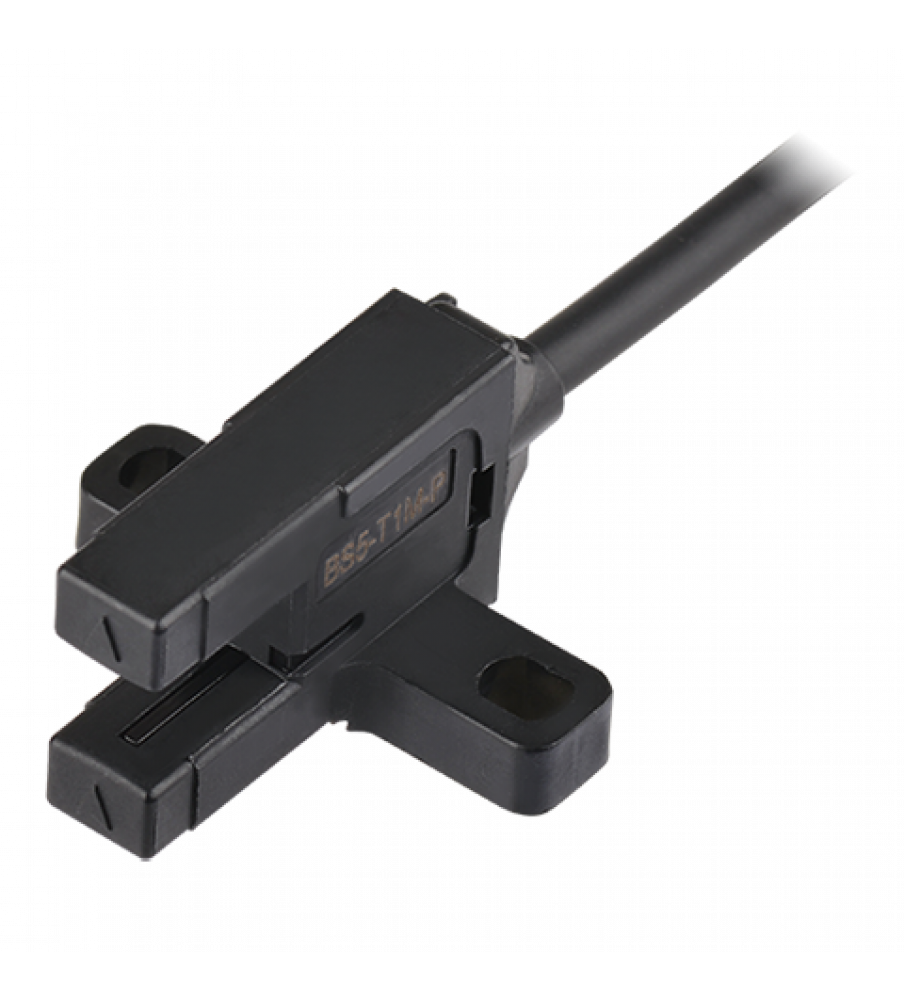

BS5-T1M-P
- Brand: Autonics
- Product Code:
- Availability: 344
Data sheet | Sensing type | Through-beam type(not modulated) |
| Sensing distance | 5mm(fixed) |
| Sensing target | Opaque material of min. ?0.8?2mm |
| Light source | Infrared LED(940nm) |
| Response time | Light ON: Max. 20??Dark ON: Max. 100??/td> |
| Power supply | 5-24VDC @(=) ?10%(ripple P-P : max. 10%) |
| Current consumption | Max. 30mA |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Connection type | Cable type(?3, 1m) |
| Environment_Ambient illumination | Fluorescent lamp: Max. 1,000lx(received illumination) |
| Environment_Ambient temperature | -20 to 55?? storage : -25 to 85??/td> |
| Protection structure | IP50 |
| Approval | @(CE) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Response frequency | 2kHz |
| Hysteresis(distance) | 0.05mm |
| Material | Polybutylene terephthalate |
| Weight | Approx. 50g(approx. 30g) |
| Photoelectric Sensor |
| Sensing type |
Through-beam type |
| Sensing distance |
5m |
| Light Source |
Infrared LED |
| Power supply |
10-30VDC ±10%(ripple P-P: max. 10%) |
| Operation mode |
Selectable Light ON or Dark ON by control wire (white) |
| Control output |
NPN open collector |
