Data sheet?
| Control phase | Single-phase |
|---|---|
| Heatsink | Heatsink |
| Mounting type | Panel, DIN rail |
| Rated input current | Analog input 4-20mA |
| Rated load voltage | 200-480VAC~ (50/60Hz) |
| Dielectric strength | 4000VAC 50/60Hz for 1 min (input-output, input/output-case) |
| Rated load current | 60A |
| Operation mode | Cycle control(variable cycle/fi xed cycle) Phase control(phase equality division method/power equality division method) |
| Approval |   |
| Environment_Ambient temperature | -20 to 70?? storage: -20 to 100??br>(The rated load current capacity is different depending on ambient temperature. Refer to '??SSR Derating Curve'.) |
| Environment_Ambient humidity | 45 to 85% RH, storage: 45 to 85% RH |
| Weight | Approx. 760g(Approx. 680g) |

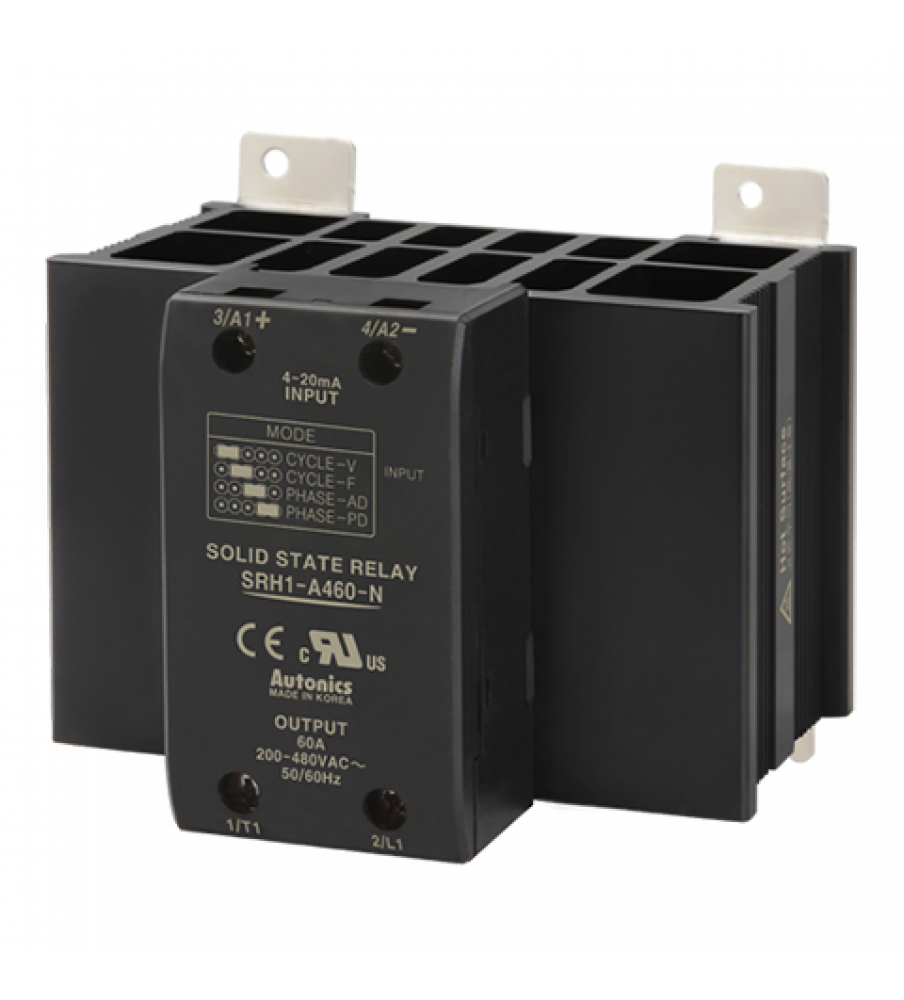

Tags: SRH1-A460-N
