Data sheet?
| Number of pins | 4-pin |
|---|---|
| Power supply | Max. 250VAC~/DC  |
| Rated current | Max. 3.0A |
| Terminal retention | Min. 1.4kgf |
| AWG | AWG20-22 |
| Nominal cross Section Area | 0.32~0.5mm? |
| Cover diameter | ?1.0 to 1.2mm |
| Cover color | Green |
| Extraction | Min. 0.49N (50gf)/pin |
| Insertion | Max. 1.96N (200gf)/pin |
| Material | Body: PC/ABS (UL94V-0), Terminal: C5210 (gold 0.2?m), Case: PC (UL94-V0) |

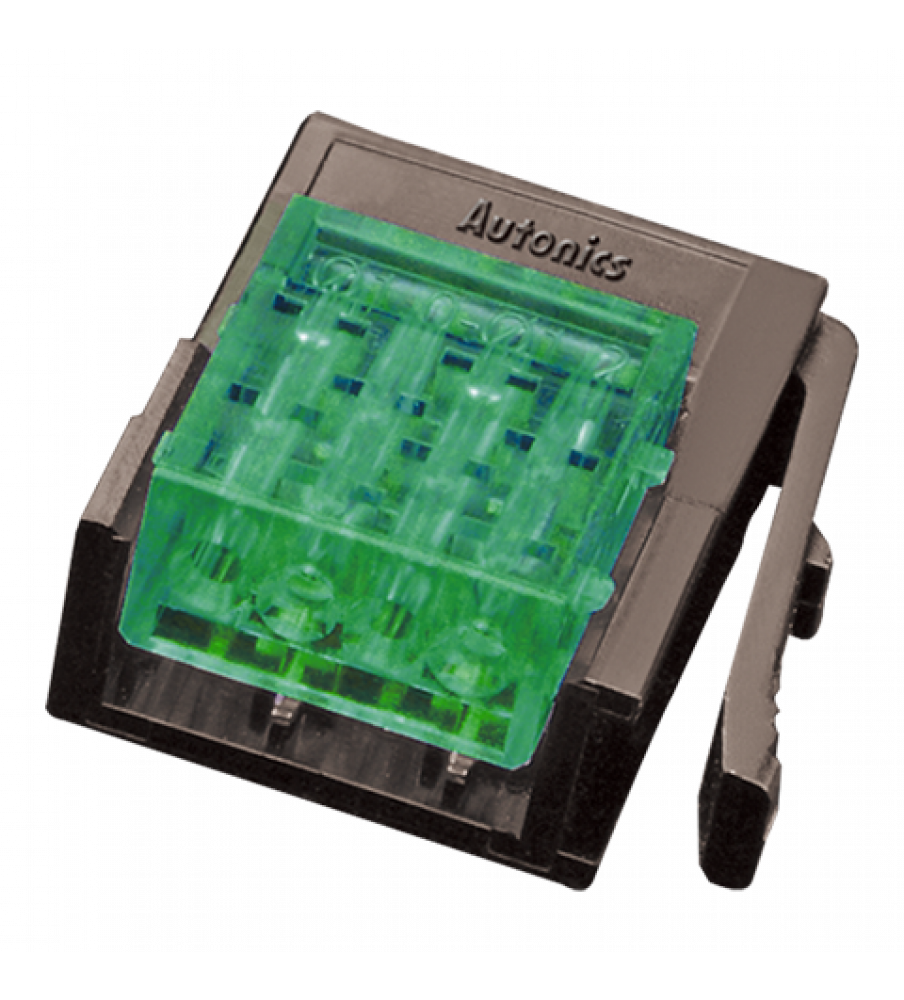

| Sensor Connector | |
| Connector type | Wire mount plug |
| Color | Green |
| Pins | 4Pin |
| Wire Specifications | AWG22 to 20 (Wire0.32 to 0.5) |
| Cover diameter | 1.0 to 1.2 mm |
