Data sheet?
| Number of pins | 3-pin |
|---|---|
| Power supply | Max. 250VAC~/DC  |
| Rated current | Max. 3.0A |
| Terminal retention | Min. 1.4kgf |
| Lines | 4 |
| PCB | Fender plated-through hole, Hole diameter: 1.0mm, PCB thickness: 1.0 to 2.2mm |
| Extraction | Min. 0.49N (50gf)/pin |
| Insertion | Max. 1.96N (200gf)/pin |
| Material | Body: PC/ABS (UL94-V0), Terminal: C5210 (gold 0.2?m) |

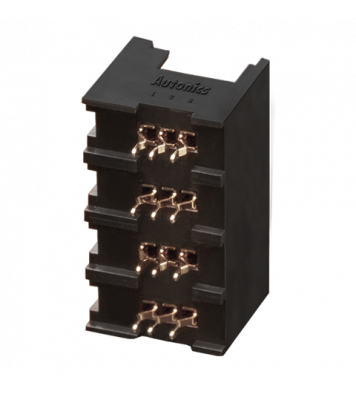

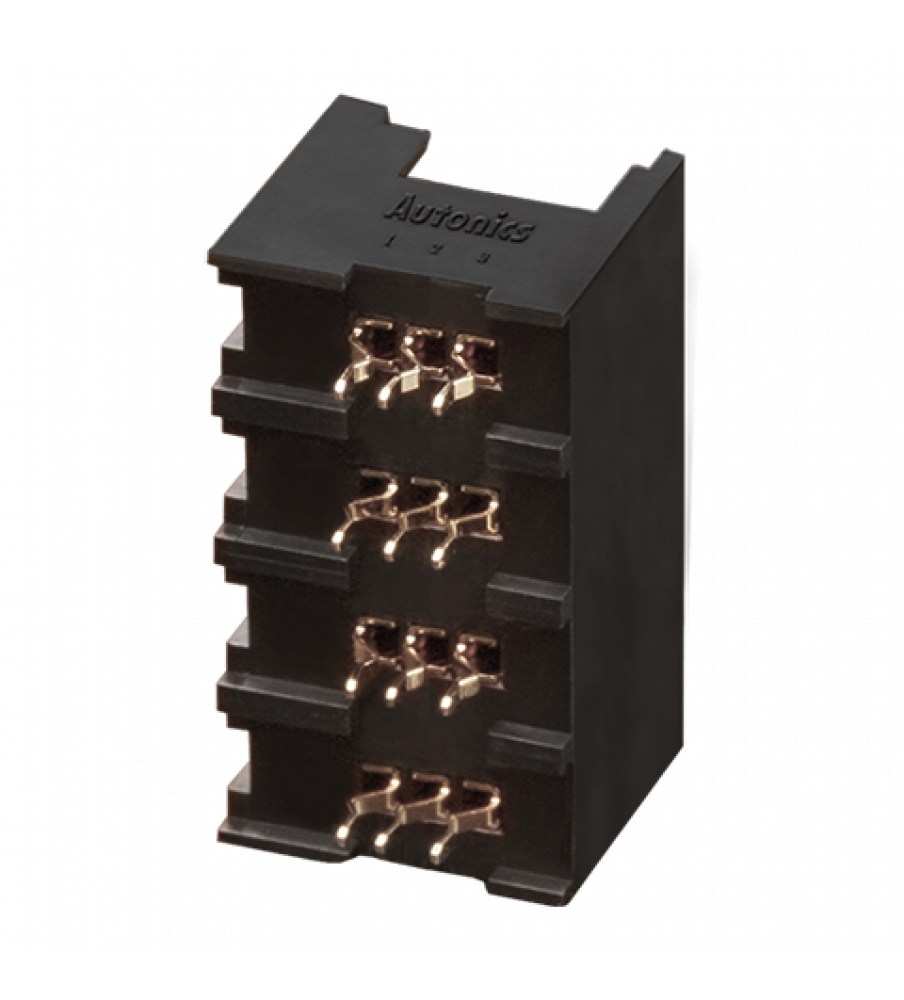

| Sensor Connector | |
| Connector type | Board mount socket |
| Pins | 3Pin |
| Lines | 4Line |
