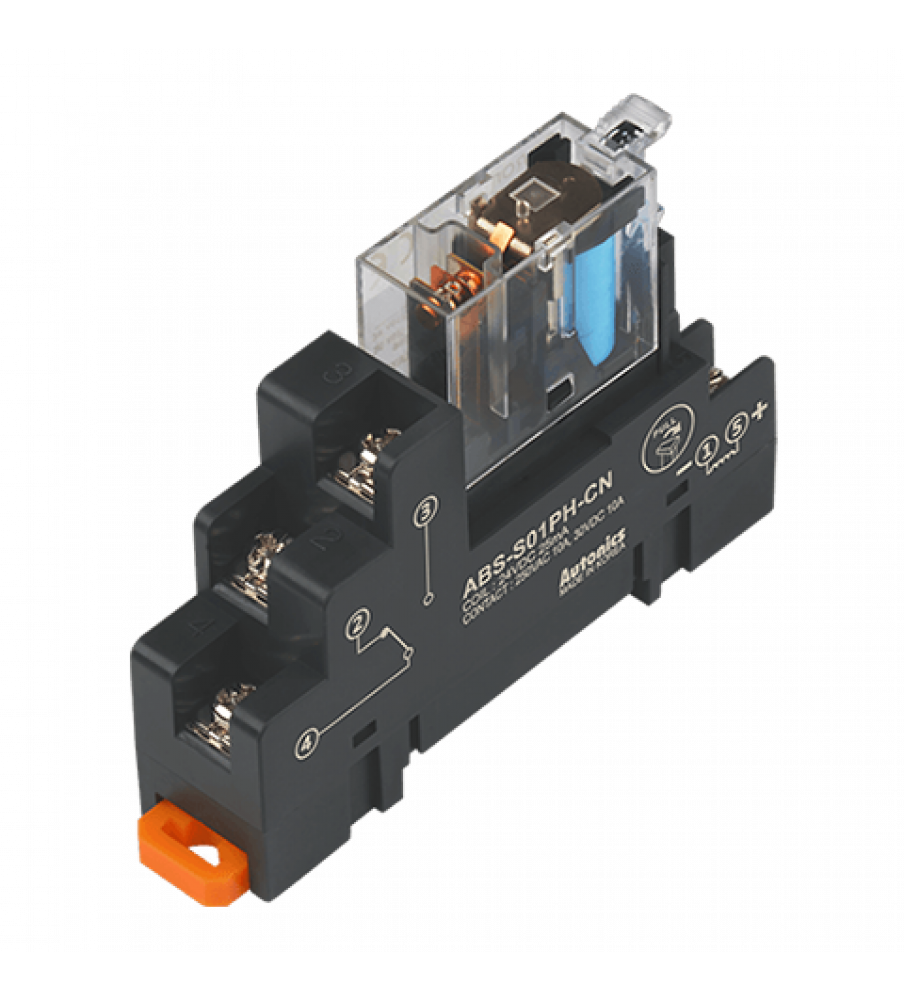

ABS-S01PH-CN
- Brand: Autonics
- Product Code:
- Availability: 2
Data sheet | Rated voltage | 24VDC @(=) |
| Rated load voltage & current | 250VAC~ 10A, 30VDC @(=) 10A |
| Current consumption | ??5mA |
| Applied relay | AHN12024 [MATSUSHITA (Panasonic)] |
| Number of relay points | 1-point |
| Indicator | Operation indicator: Blue LED |
| Applicable cable | AWG17 to 14(1.0 to 2.0mm?) |
| Insulation resistance | ??,000M??(at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 5,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE, BASE: PBT, TERMINAL PIN: Brass, Phosphor bronze |
| Approval | @(CE) @(CULUS_LISTED) |
| Weight | Approx. 720g(approx. 53g) |
| Relay Terminal Blocks |
| Number of Terminals |
1-point |
| Rated Voltage |
24VDC |
| Current consumption |
≤25mA |
| Applied relay |
AHN12024 [MATSUSHITA (Panasonic)] |
| Protection structure |
IP20(IEC standard) |
Tags:
Relay Terminal Block,
Screw type,
1Relay (250VCA 3A,
30VDC 3A),
Matsushita(Panasonic ANH12024),
24VDC
