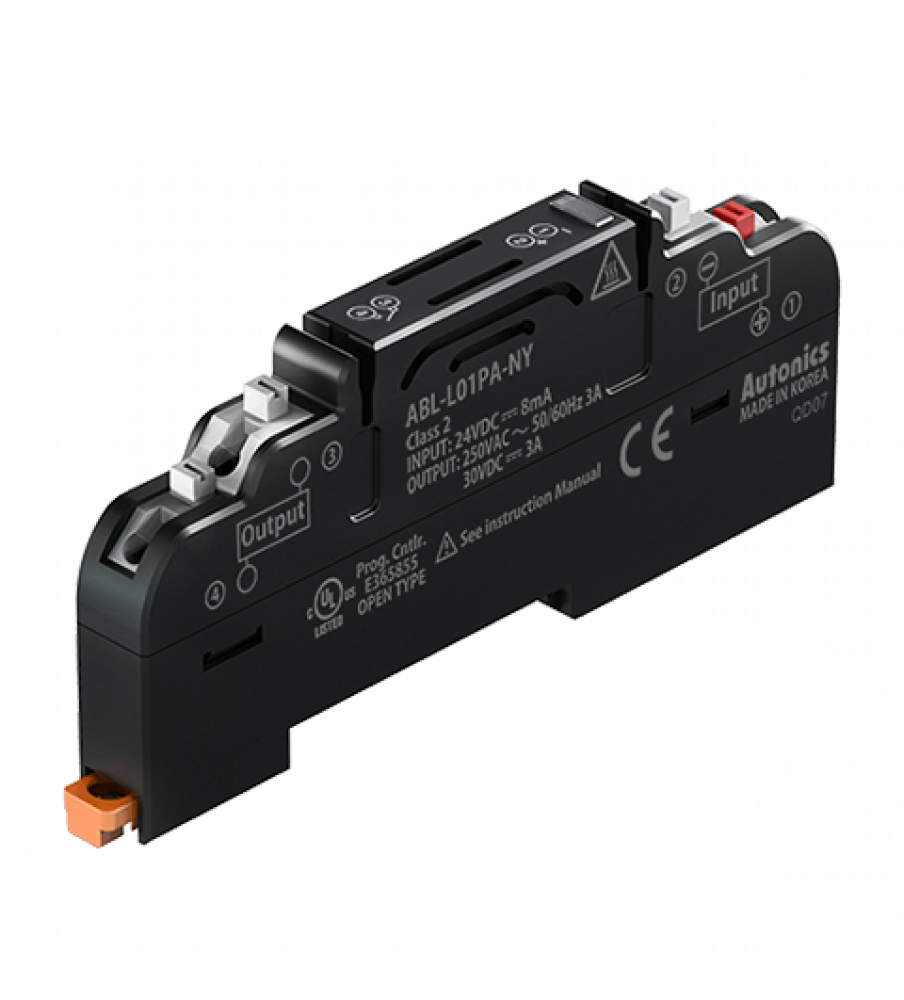

ABL-L01PA-NY
- Brand: Autonics
- Product Code:
- Availability: 0
Data sheet | Rated voltage | 24VDC @(=) ?10% |
| Rated load voltage & current | 250VAC~ 50/60Hz 3A, 30VDC @(=) 3A |
| Current consumption | ??8mA |
| Applied relay | APAN3124 [MATSUSHITA(Panasonic)] |
| Number of relay points | 1-point |
| Terminal type | Screwless |
| Terminal pitch | 9.0mm(arranging over 2 units) |
| Indicator | Operation indicator: Blue LED |
| Applicable cable_Solid wire | ?0.6 to ?1.25mm(60??only) |
| Applicable cable_Stranded wire | AWG22-16(0.3~1.25mm?)(60??only) |
| Insulation resistance | ??,000M??(at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Terminal block: Polyamide 66, Conducting plate: Brass, CASE&BASE: Poly phenylene sulfide |
| Protection structure | IP20(IEC standard) |
| Approval | @(CE) @(CULUS_LISTED) |
| Weight | Approx. 138g(approx. 21g) |
| Relay Terminal Blocks |
| Number of Terminals |
1-point |
| Rated Voltage |
24VDC |
| Current consumption |
≤ 8mA |
| Applied relay |
APAN3124 [MATSUSHITA(Panasonic)] |
| Protection structure |
IP20(IEC standard) |
Tags:
Relay terminal block,
Matsushita(Panasonic)PA,
1 point,
NPN Input. Varistor installed type. 24VDC
