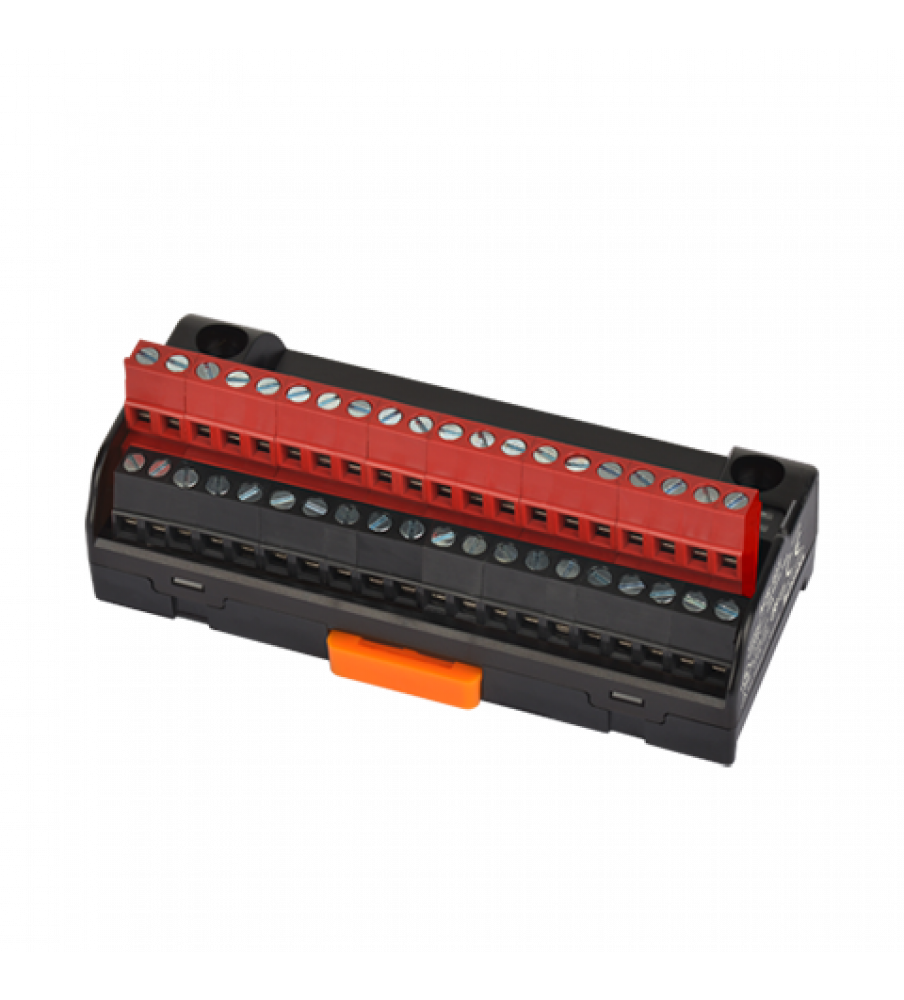

ACR-40T
- Brand: Autonics
- Product Code:
- Availability: 5
Data sheet | Rated voltage | ??50VDC @(=), 250VAC~, 50/60Hz |
| Rated current | Max. 10A |
| Common type | Up +COM, Down -COM |
| Terminal type | Rising Clamp |
| Number of terminal | 40 EA |
| Terminal pitch | 5.0mm |
| Applicable cable_Solid wire | ?0.6 to ?1.25mm(60??only) |
| Applicable cable_Stranded wire | AWG22-16(0.30 to 1.25mm?)(60??only) |
| Stripped wire length | 8 to 10mm |
| Insulation resistance | ??,000M??(at 500VDC megger) |
| Dielectric strength | 3,000VAC~ 50/60Hz for 1 minute (between open terminals) |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Terminal: polyamide 66, conductive plate: copper, tin plated, case: polycarbonate, base: polycarbonate |
| Approval | @(CE) @(CULUS_LISTED) |
| Weight | Approx. 172g(approx. 105g) |
| Relay Terminal Blocks |
| Number of Terminals |
40 EA |
| Rated Voltage |
≤250VDC |
| Current consumption |
Max. 10A |
| Terminal type |
Rising Clamp |
Tags:
Common Terminal Block,
Rising Clamp Type,
40 Terminals,
Up-Down COM,
250 VDC/VAC 50/60Hz
