| Connector for PLC | Fujitu 40pin socket |
|---|---|
| Connector for terminal block | Hirose 20pin/40pin/50pin socket |
| Number of connector pins | 40-pin |
| Applicable cable | UL 20276 TWIST 20C/40C/50C |
| Conductor characteristics | 7/0.127mm(AWG 28)?20P, 7/0.127mm(AWG 28)?10P, 7/0.127mm(AWG28)?25P |
| Insulation diameter | 0.12mm? |
| Cable diameter | ?7.2mm(40C) / 8.9mm(50C) |
| Rated current | ??A |
| Conductor resistance | ??.223?/m |
| Insulation voltage | 500VAC 50/60Hz for 1 min. |
| Insulation resistance | ??5M??km |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 122g |

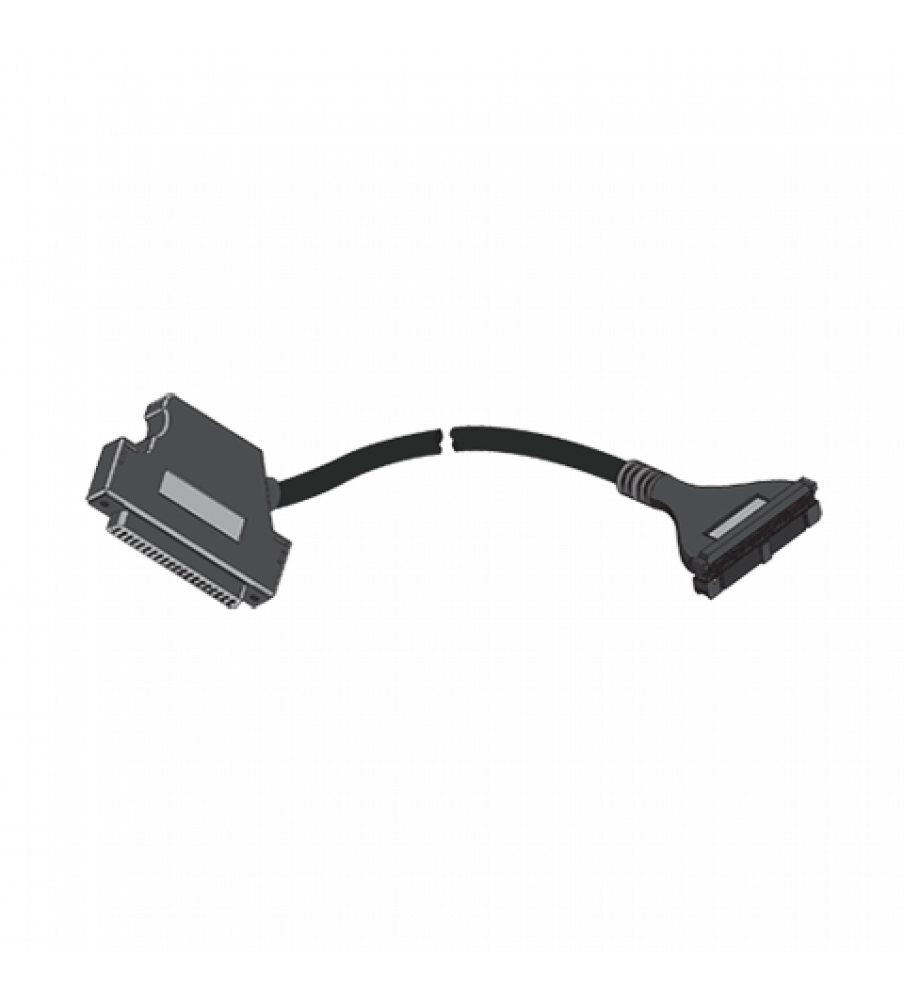

Tags: I/O Cable, Hirose Plug - Fujitsu Plug, 40Pin, 1N, 1M Cable, +/- Forward, Right Type
