| Basic Step Angle [FULL/HALF] | 1.8?/0.9? |
|---|---|
| Max. holding torque | 1.42kgf.cm |
| Rotor Moment Of Inertia | 12g?cm? |
| Winding Resistance | 8.8? |
| Rated current | 1.0A/Phase |
| Motor length | 59mm |
| Shaft type | Single shaft |
| Operation method | Bipolar |
| Resolution | 16,000PPR(4,000PPR?4-multiply) |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Max. response frequency | 1,000kHz |
| Protection structure | IP30 |
| Motor phase | 2-Phase |
| Number Of Axes | 1-axis |
| Environment_Ambient temperature | 0 to 50?? storage: -20 to 70??/td> |
| Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Weight | Approx. 0.318kg (approx. 0.222kg) |

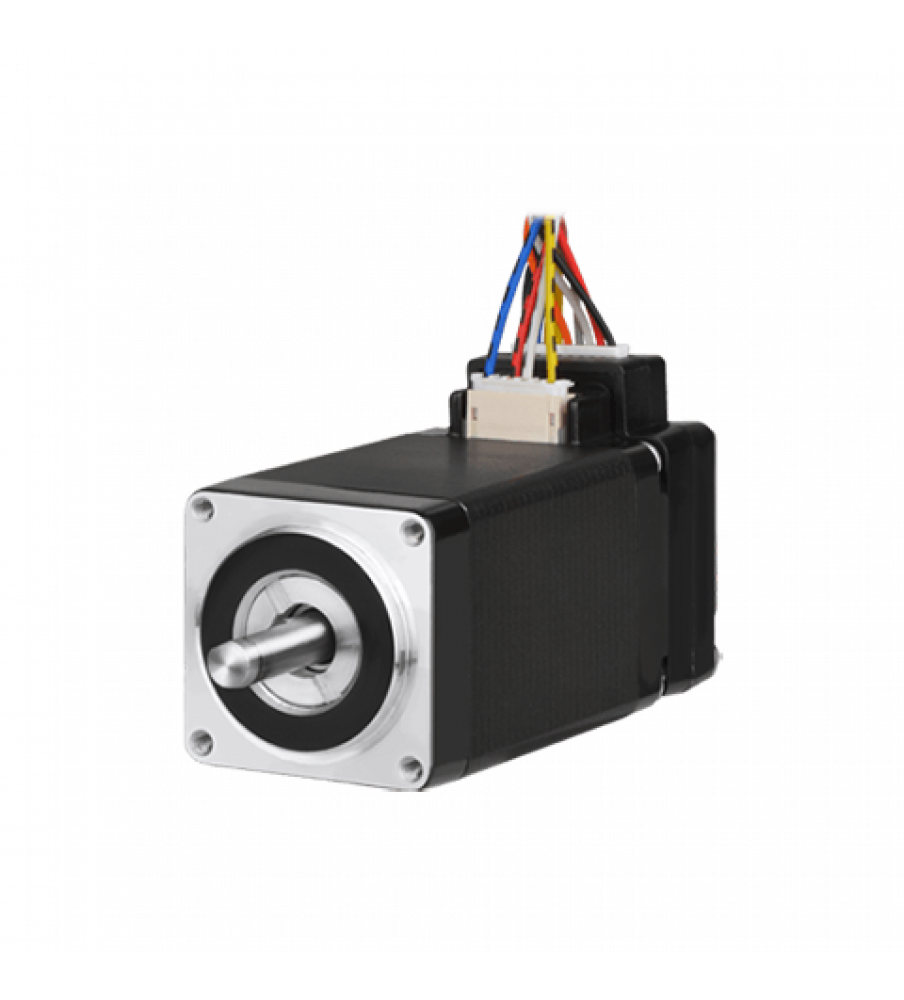

Tags: 2-Phase Closed-Loop Stepper Motor, 28mm Square, Single Shaft, 1.0A/Phase, 1.42Kgf.cm / 0.14N.m
