| Basic Step Angle [FULL/HALF] | 1.8?/0.9? |
|---|---|
| Max. holding torque | 11.22kgf.cm |
| Motor_Applied Driver | Frame size 86mm AC type 2-phase closed-loop stepper motor driver |
| Rotor Moment Of Inertia | 240g?cm? |
| Winding Resistance | 1.5? |
| Rated current | 2A/Phase |
| Motor length | 82.8mm |
| Shaft type | Single shaft |
| Operation method | Bipolar constant current Drive |
| Resolution | 10,000PPR(2,500PPR?4-multiply) |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Max. response frequency | 300kHz |
| Protection structure | IP30 |
| Approval | @(CE) |
| Motor phase | 2-Phase |
| Environment_Ambient temperature | 0 to 50?? storage: -20 to 70??/td> |
| Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Weight | Approx. 0.95kg(approx. 0.75kg) |

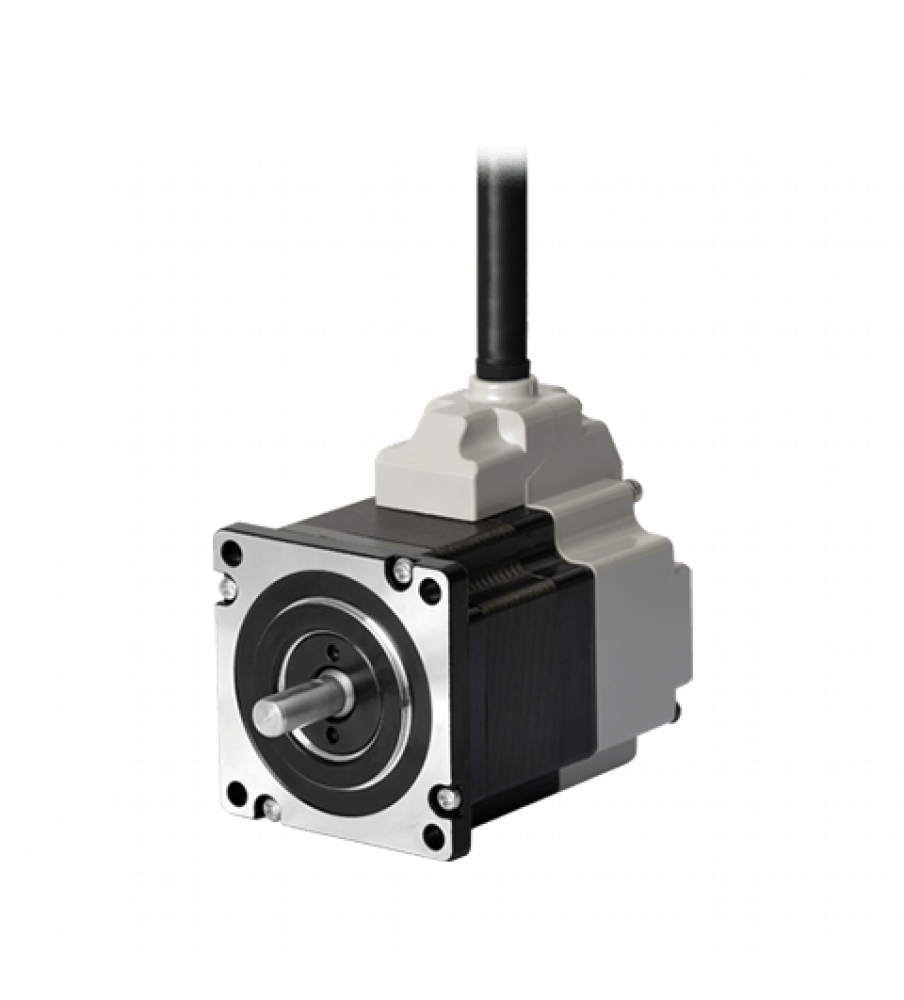

Tags: 2-Phase Closed-Loop Stepper Motor, 60mm Square, Torque 11.22kgf.cm(1.1N.m), 2.0A/Phase, for AiCA-D-60MA
