Data sheet?
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
|---|---|
| LED block_Power supply | 12-24VAC~ 50/60Hz, 12-24VDC  |
| LED block_Current consumption | Max. 20mA |
| Weight_Mounting hole_?22/25 | Approx. 14.5g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Singular type A/B contact | Approx. 11g |
| Weight_LED block_AC/DC voltage type | Approx. 11g |
| Button type | [Illuminated] Extended |
| Contact block | A contact: 1, B contact: 1 |
| Contact block type | Singular type |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP50 |
| Approval |    (LED blocks are except certifications) |
??nvironment resistance is rated no freezing or condensation.
??he control unit, contact blocks, LED blocks are sold separately.

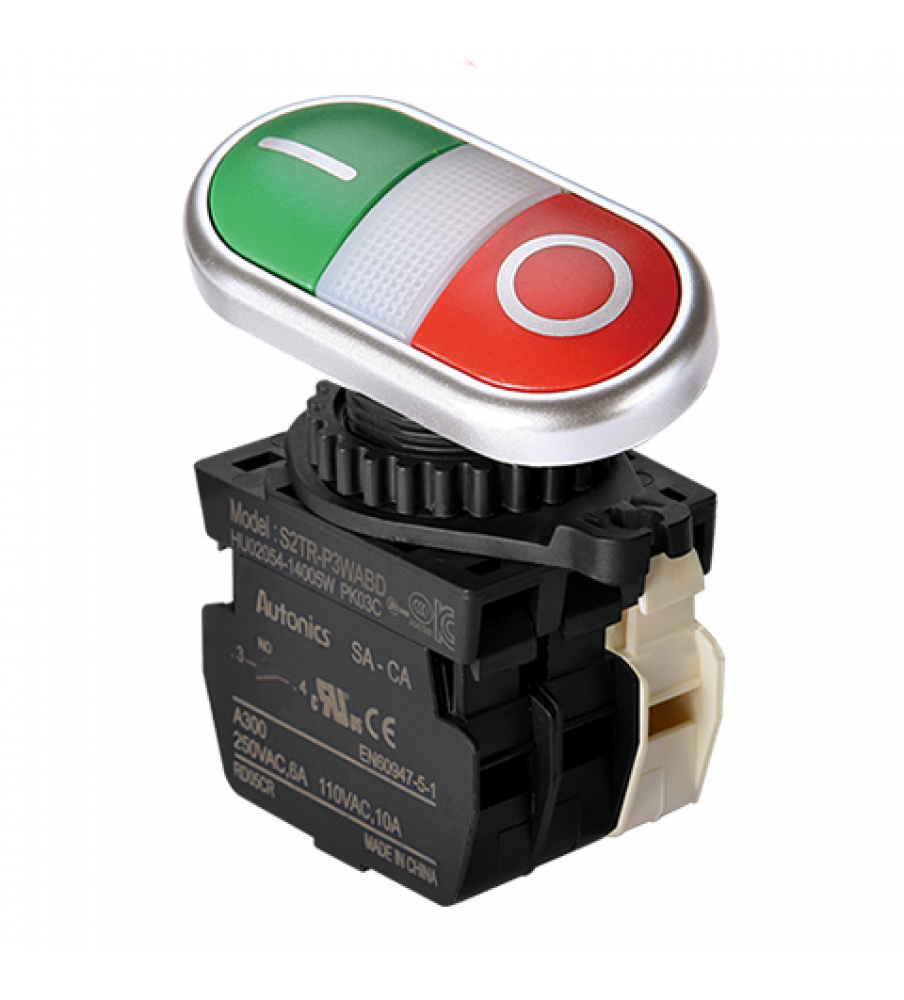

| Double Push Button | |
| Mounting Hole (mm) | 22/25 |
| Color | WHITE |
| Contact | A1B1 (NO and NC) |
| Contact number | 2 |
| Power Suppy | LED 12-30 VDC |
| MOQ / UNIT | 10EA |
