Data sheet?
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
|---|---|
| Protection structure | IP52(IP65 protection structure with waterproof cap for ?22/25 round push button switches) |
| Approval |    (LED blocks are except certifications) |
| Weight_Mounting hole_?22/25 | Approx. 14.5g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Modular type A/B contact | Approx. 10g |
| Illuminated | Non-illuminated |
| Letter marking | None(no printing) |
| Button type | Extended |
| Color | Green |
| Contact block | A contact: 1 |
| Contact block type | Modular type |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
??nvironment resistance is rated no freezing or condensation.
??he control unit, contact blocks, LED blocks are sold separately.
??aterproof cap (model: SA-WP) is available.

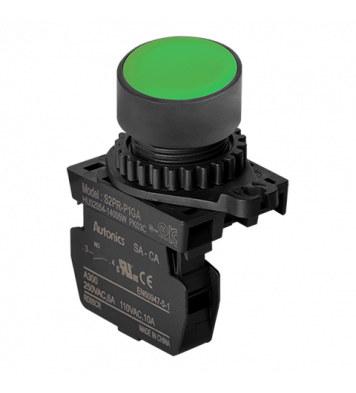

Tags: S2PR-P1GAM
