Data sheet?
| Display method | 3-digit 7-segment LED |
|---|---|
| Control method | ON/OFF control, P control |
| Input specification | Thermocouple: K(CA), J(IC) RTD: DPt100? |
| Sampling cycle | 500ms |
| Control output | Relay (16A) |
| Power supply | 100-240VAC~ 50/60Hz |
| Protection structure | IP65(front panel) |
| Approval |  |
| Display accuracy | ?1-digit with a bigger one of ?0.5% of PV or ?1??/td> |
| Hysteresis(adjustable sensitivity) | 1 to 100??/td> |
| Environment_Ambient temperature | -10 to 50?? storage: -20 to 60??/td> |
| Environment_Ambient humidity | 35 to 85% RH |
| Weight | Approx. 103g |
??nvironment resistance is rated at no freezing or condensation.

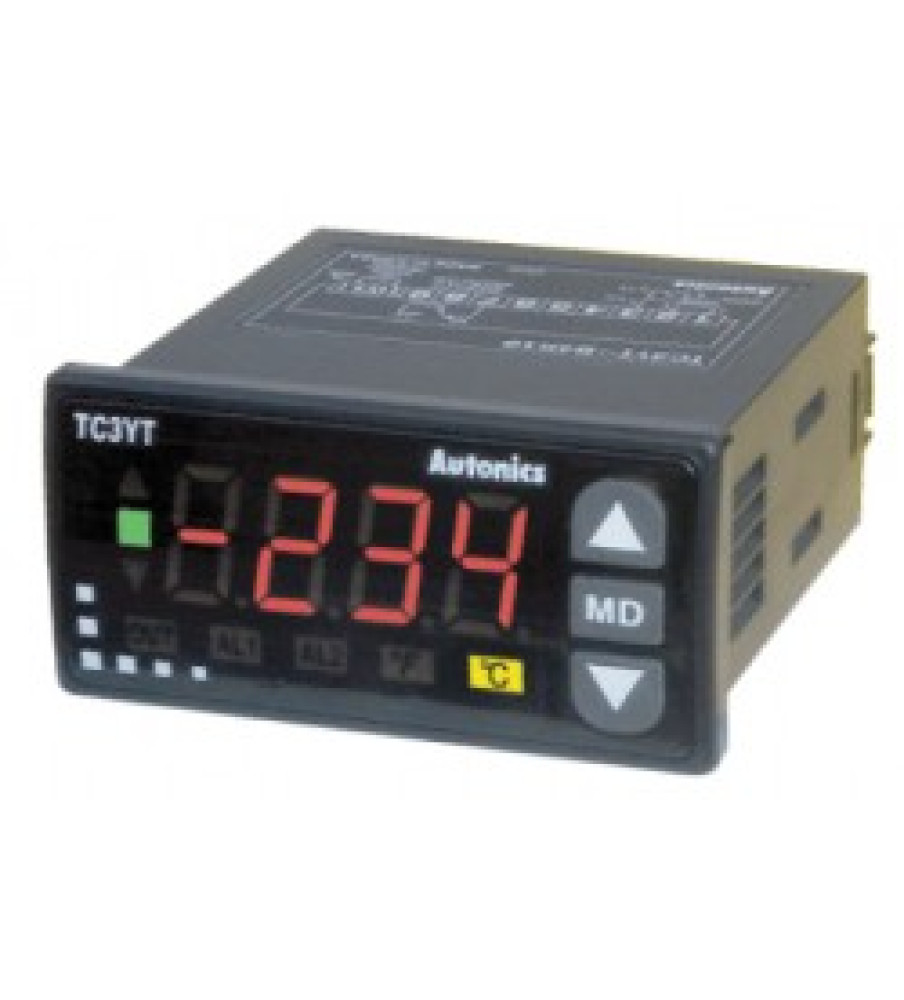

Tags: TC3YT-B4R16
