Data sheet?
| Number of phase | 3-phase |
|---|---|
| Power supply | 440V |
| Output range | Phase control: 5 to 98%, Z.C. control: 0 to 100% |
| Control method | ??Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback) ??Cycle control (Z.C.): Fixed cycle control, Variable cycle control ??ON/OFF control (Z.C.) |
| Load | ??Phase control: resistance load, inductive load ??ON/OFF, Cycle control: resistance load |
| Power consumption | Max. 10W (except FAN operation power) |
| Control input | ??Auto: 4-20mA / 0-20mA / 0-5VDC  / 1-5VDC / 0-10VDC / voltage pulse (0/12VDC ) / no-voltage input (ON/OFF) / Communication input (RS485)??Manual: inside 10k??VR, outside 3 to 10k??VR (min. 2W) |
| Approval |  |
| Size | 0~50A |
| Rated current capacity | 50A |
| Option | No option |
| Environment_Ambient temperature | -10 to 50?? storage: 20 to 80??/td> |
| Environment_Ambient humidity | 5~90%RH |
| Weight | 6.5kg |
??he weight includes packaging. The weight in parenthesis is for unit only.
??nvironment resistance is rated at no freezing or condensation.

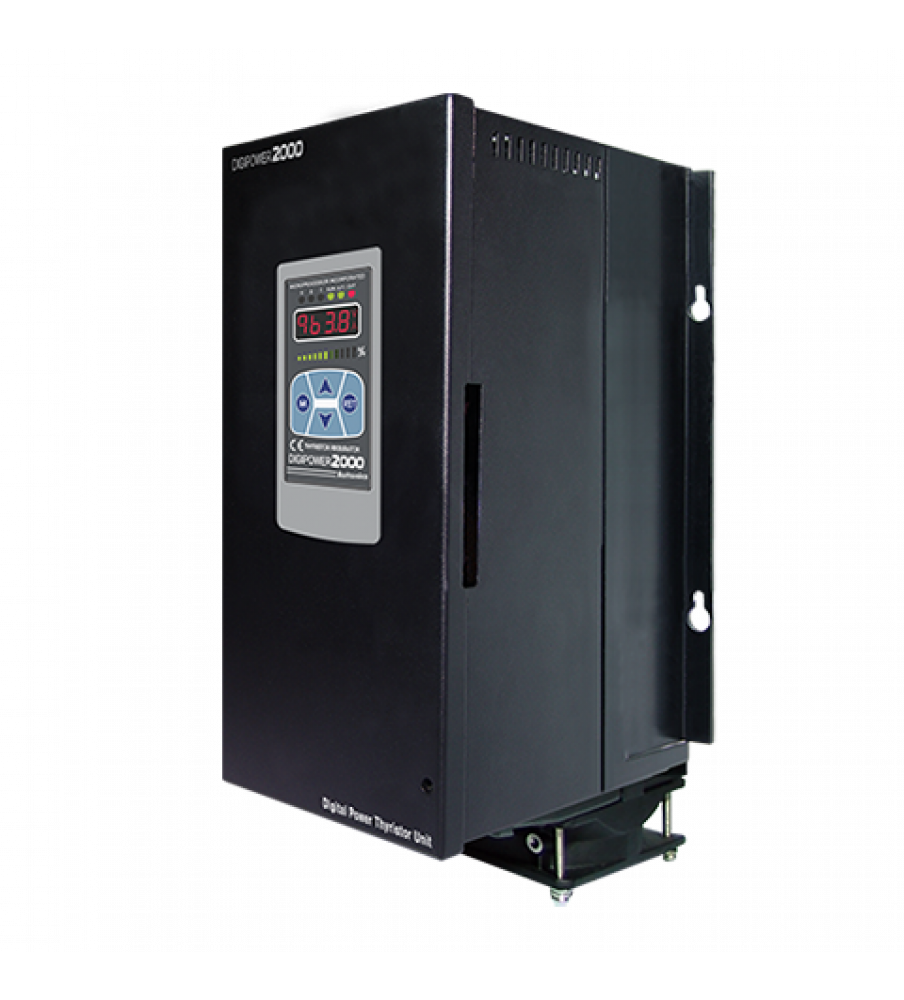

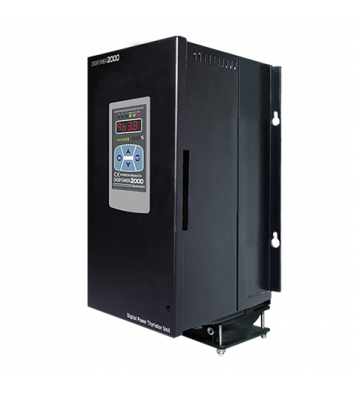

| Thyristor Unit | |
| Phase | 3-PHASE |
| Voltage | 440V |
| Size | 140 x 306 x 201 mm 0-50A |
| Current | 50 A |
| Option | No option |
