Data sheet?
| Control phase | 3-phase |
|---|---|
| Rated load voltage | 220VAC~ |
| Rated load current | 100A |
| Control input | ??uto control: DC4-20mA, 1-5VDC  , ON/OFF contact (no-voltage input), pulse voltage (5-12VDC )??anual control: outside adjuster (10k?), inside adjuster (output limit) |
| Power supply | 100-240VAC~ 50/60Hz |
| Min. load current | 1A |
| Allowable voltage range | 90 to 110% of rated voltage |
| Power consumption | Max. 32VA |
| Display method | 3-digit 7-segment LED |
| Indicator | ??peration indicator/Manual control indicator: green LED ??larm indicator/output indicator/unit (V, A) indicator: red LED |
| Control method | ??hase control: normal control mode ??ycle control: fixed cycle control mode ??N/OFF control |
| Applied load | ??hase control, ON/OFF control: resistance load, inductive load ??ycle control: resistance load |
| Digital inputs | RUN/STOP switching, AUTO/MAN switching, RESET |
| Output_Alarm | 250VAC~ 3A, 30VDC 3A, 1c resistive load |
| Output_Communication | RS485 communication output (Modbus RTU method) |
| Output range | Phase control: 0 to 98%, Cycle control: 0 to 100%, ON/OFF control: 0%, 100% |
| Output accuracy | ??ormal control: within ?10% F.S. of rated load voltage ??tatic current feedback control: within ?3% F.S. of rated load current ??tatic voltage feedback control: within ?3% F.S. of rated load voltage ??tatic power feedback control: within ?3% |
| Setting type | By front keys, by communication |
| Function | Output limit (OUT ADJ), AUTO/MAN selection, control method selection, RESET, SOFT START, SOFT UP/DOWN, output high/low limit, input correction, input slope correction, monitoring (control input, load voltage/current/power/resistance, power supply frequenc |
| Function_Alarm | Overcurrent alarm, overvoltage alarm, fuse break alarm, SCR error alarm, heater break alarm, heatsink overheat alarm |
| Cooling method | Forced air cooling (with the cooling fan) |
| Insulation resistance | Over 200M? (at 500VDC megger) |
| Dielectric strength | 2,000VAC~ 50/60Hz for 1 min (between input terminals and power terminals) |
| Output leakage current | 10mArms |
| Noise immunity | ?2kV the square wave noise (pulse width: 1?? by the noise simulator |
| Memory Protection | Approx. 10 years(non-volatile semiconductor memory type) |
| Vibration | 0.75mm amplitude at frequency of 5 o 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Vibration_Malfunction | 0.5mm amplitude at frequency of 5 to 55Hz in each X, Y, Z direction for 10 min |
| Environment_Ambient temperature | -10 to 55?? storage: -20 to 80??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Accessories | 11-pin connector, isolating barrier: 4 |
| Approval |  |
| Weight | Approx. 9.7kg(approx. 8.7kg) |

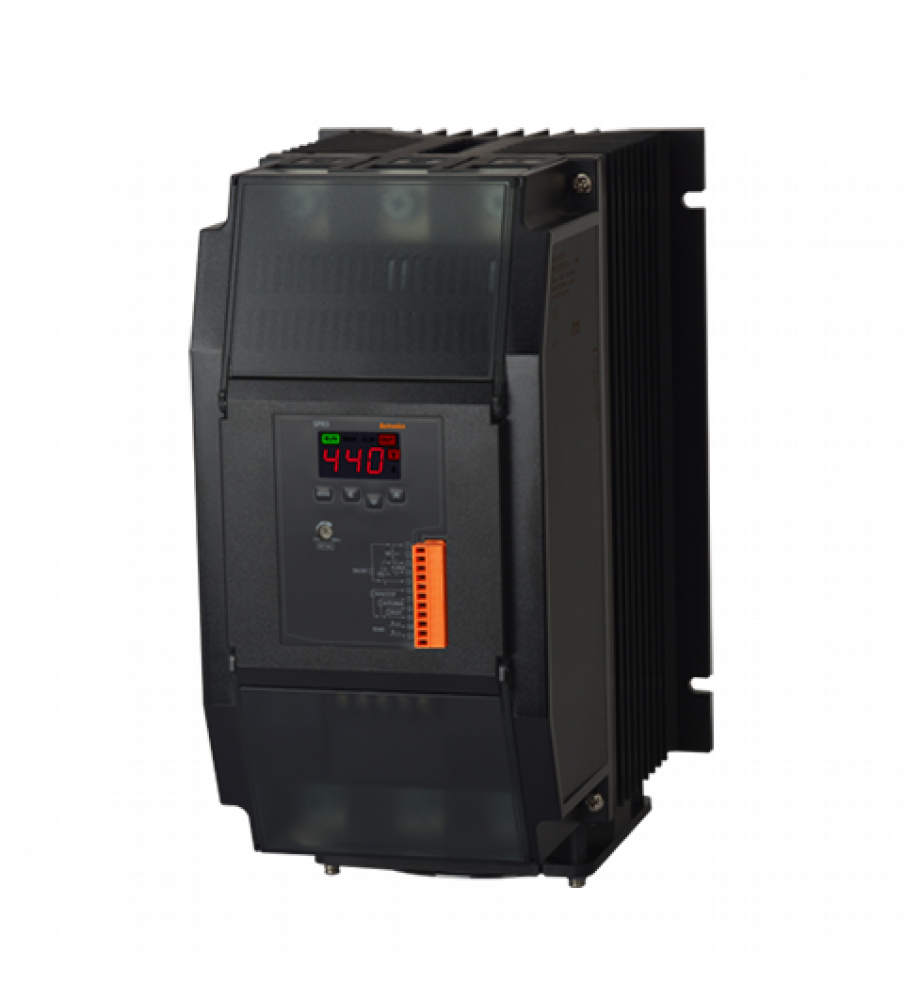

Tags: SPR3-2100TNN
