| Basic Step Angle [FULL/HALF] | 0.72?/0.36? |
|---|---|
| Max. holding torque | 21kgf.cm |
| Rotor Moment Of Inertia | 1400g?cm? |
| Winding Resistance | 1.76? |
| Rated current | 1.4A/Phase |
| Motor length | 68mm |
| Shaft type | Single shaft |
| Wire connection | Pentagon |
| Protection structure | IP30 |
| Approval | @(CE) |
| ElectroMagnetic brake_Rated excitation voltage | 24VDC @(=)?10%(no-polarity) |
| ElectroMagnetic brake_Rated excitation current | 0.62A |
| ElectroMagnetic brake_Static friction torque | 40kgf.cm |
| ElectroMagnetic brake_Rotation part inertia moment | 153?10@(^-7)kgf.cm? |
| ElectroMagnetic brake_B type brake | Power on: brake is released, power off: brake is operating |
| ElectroMagnetic brake_Operating time | Max. 60ms |
| ElectroMagnetic brake_Releasing time | Max. 15ms |
| Weight | Approx. 2.15kg(approx. 1.7kg) |

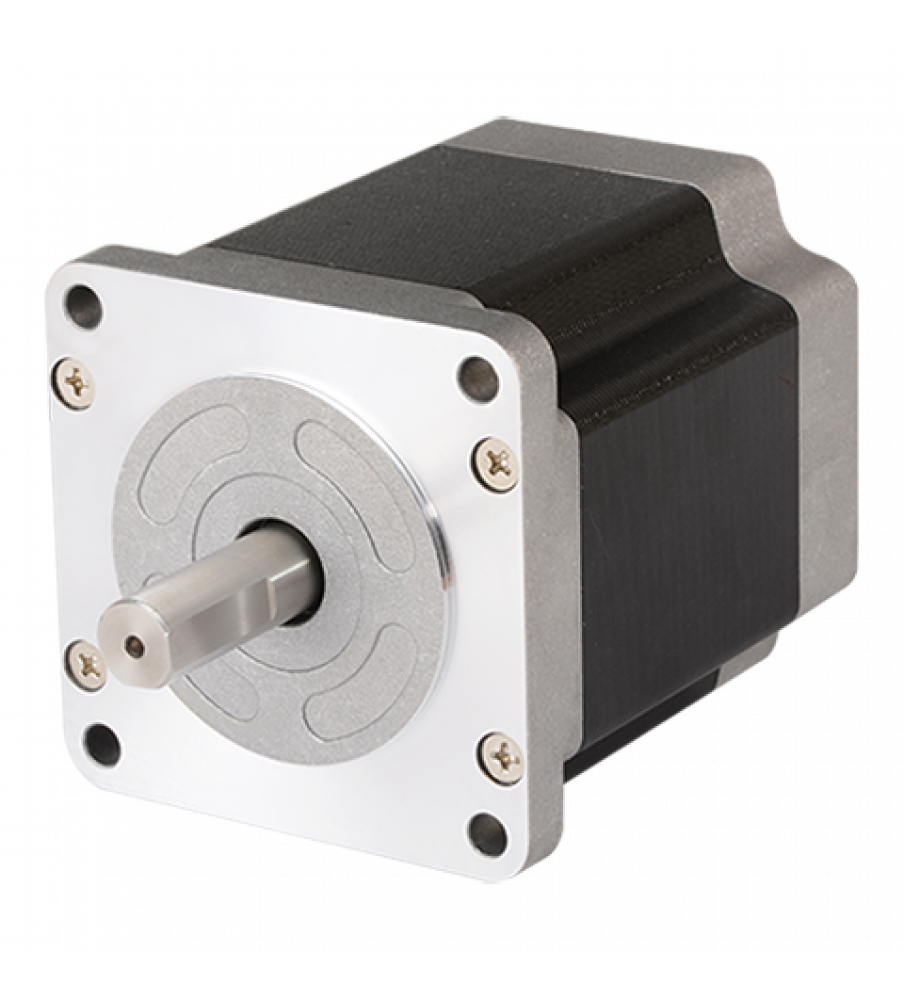

| Stepper Motor | |
| Motor Shaft | Single shaft |
| Frame size | 85 mm |
| Motor type | Shaft with brake built-in |
| Rated Current (A/Phase) | 1.4 A |
| Max. Holding Torque | 21 kgf-cm |
| Rotor Inertia | 1400 g.cm |
| Motor Length | 68 mm |
| Resistance (ohm/phase) | 1.76 |
| Wire connection | Pentagon |
