| Basic Step Angle [FULL/HALF] | 0.1?/0.05? |
|---|---|
| Max. allowable torque | 15kgf.cm |
| Rotor Moment Of Inertia | 68g?cm? |
| Winding Resistance | 2.2? |
| Rated current | 0.75A/Phase |
| Motor length | 74.5mm |
| Shaft type | Single shaft |
| Reduction ratio | 1:7.2 |
| Wire connection | Pentagon |
| Protection structure | IP30 |
| Approval | @(CE) |
| Allowable speed range | 0 to 250rpm |
| Backlash | ?35'(0.58?) |
| ElectroMagnetic brake_Rated excitation voltage | 24VDC @(=)?10%(no-polarity) |
| ElectroMagnetic brake_Rated excitation current | 0.2A |
| ElectroMagnetic brake_Static friction torque | 1.8kgf.cm |
| ElectroMagnetic brake_Rotation part inertia moment | 3?10@(^-7)kgf.cm? |
| ElectroMagnetic brake_B type brake | Power on: brake is released, power off: brake is operating |
| ElectroMagnetic brake_Operating time | Max. 15ms |
| ElectroMagnetic brake_Releasing time | Max. 25ms |
| Weight | Approx. 0.68kg(approx. 0.58kg) |
| Stepper Motor Driver | |
| Basic Step Angle | 0.1º/0.05º |
| Max. holding torque | 15kgf.cm |
| Rotor Moment Of Inertia | 68g·cm² |
| Winding Resistance | 2.2Ω |
| Rated Current | 0.75A/Phase |
| protection struture | IP30 |

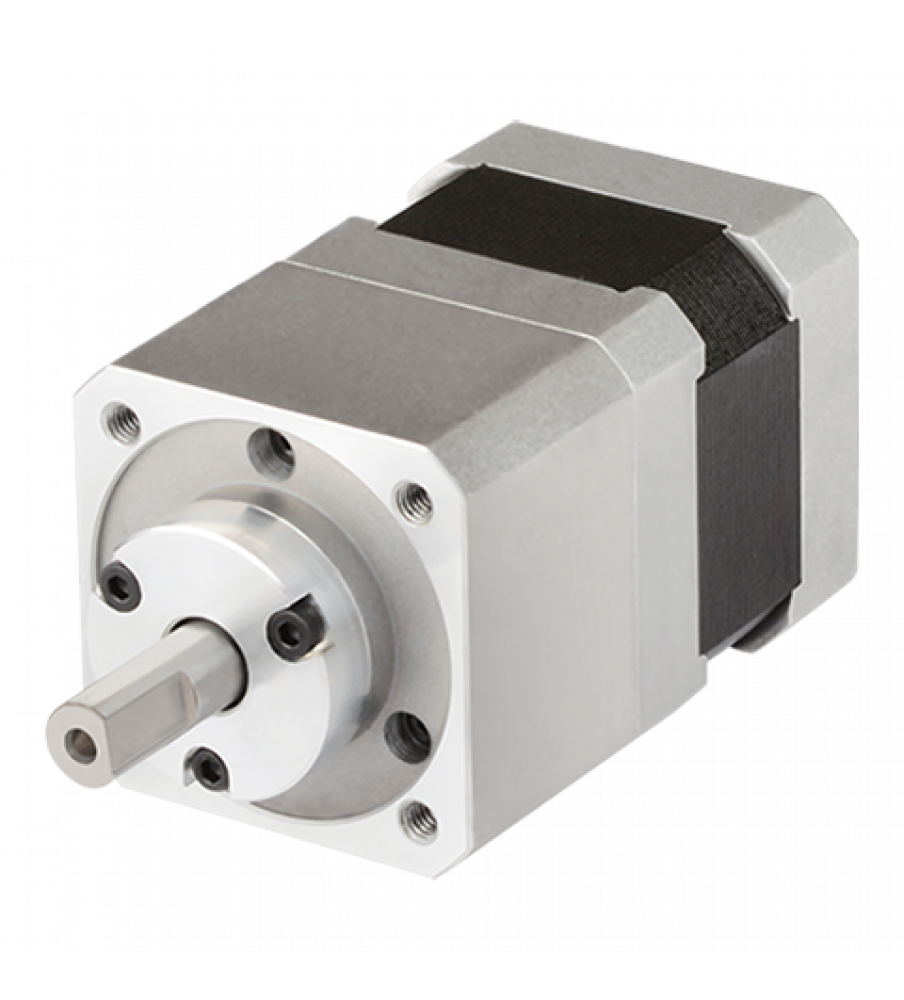

Tags: A15K-S545-G7.2
