Data sheet?
| Wire type and power | DC 3-wire type 12-24VDC  |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 4mm |
| Installation | Non-shield(non-flush) |
| Standard sensing target | 12?12?1mm(iron) |
| Response frequency | 500Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard connector |
| Protection structure | IP67 |
| Approval |  |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70?? storage: -30 to 80??/td> |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 1.5V |
| Weight | Approx. 38g(approx. 26g) |

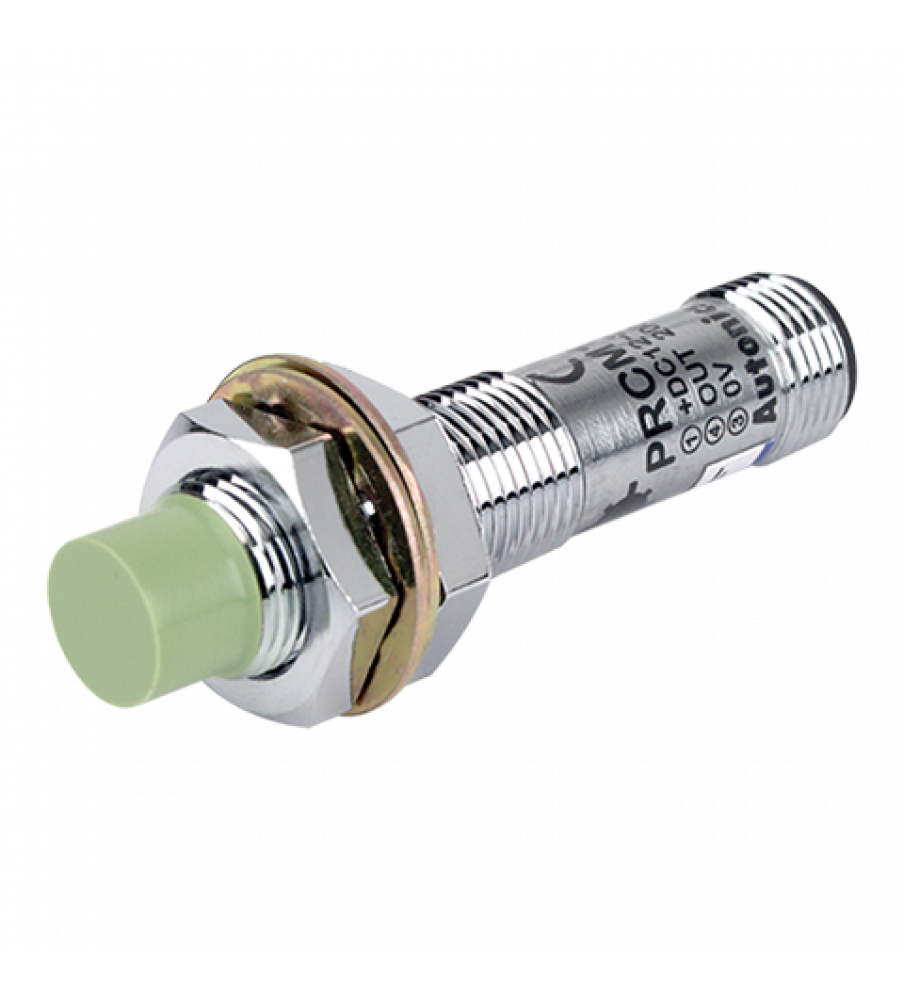

| Proximity Sensor | |
| Type | Cylindrical connector (PRCM Series) |
| Sensing Distance | 4 mm |
| Header demension / square | 12 mm |
| Shield | Non Shield |
| Connection Type | Connector |
| Voltage | 10 - 24 VDC |
| Wire Type | DC 3-wire |
| Output Type | NPN |
| Frequency | 500 Hz |
