Data sheet?
| Wire type and power | AC 2-wire type 100-240VAC~ |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Installation | Non-shield(non-flush) |
| Standard sensing target | 45?45?1mm(iron) |
| Response frequency | 20Hz |
| Current specification | Leakage current: Max. 2.5mA |
| Control output | Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard cable |
| Protection structure | IP67 |
| Approval |  |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70?? storage: -30 to 80??/td> |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 10V |
| Insulation type | Double insulation or reinforced insulation(mark:  , dielectric strength between the measuring input part and the power part: 1kV) |
| Weight | Approx. 207g(approx. 170g) |
??he response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
??he weight includes packaging. The weight in parenthesis is for unit only.
??he temperature or humidity mentioned in Environment indicates a non freezing or condensation.

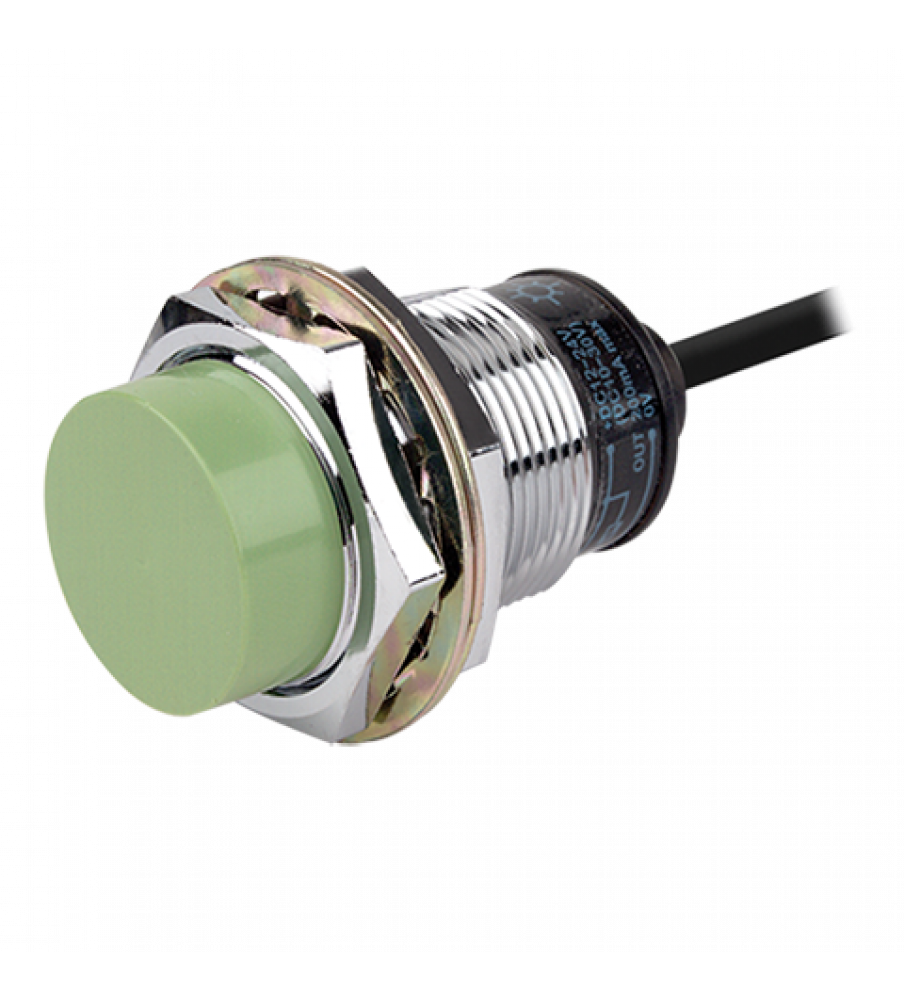

| Proximity Sensor | |
| Type | Cylindrical round (PR Series) |
| Sensing Distance | 15 mm |
| Header demension / square | 30 mm |
| Shield | Non Shield |
| Connection Type | 2 m cable loose leads |
| Voltage | 100 - 240 VAC |
| Wire Type | AC 2-wire |
| Output Type | NPN |
| Frequency | 20 Hz |
