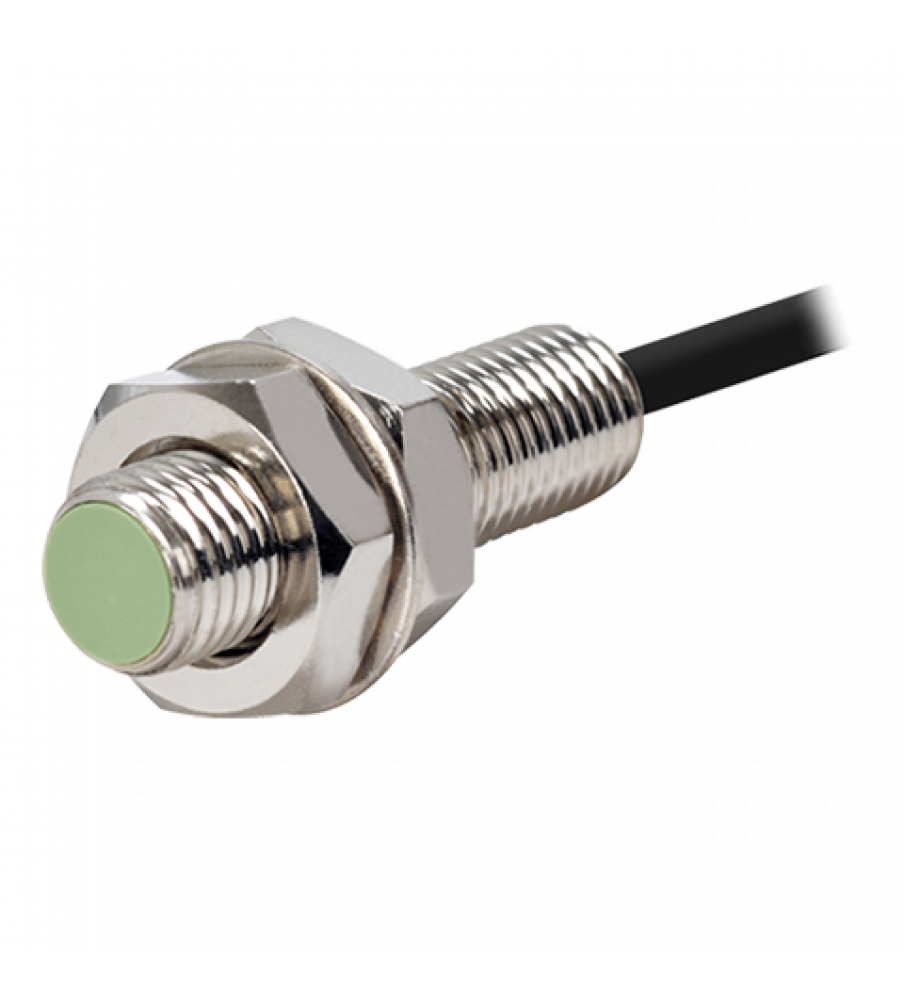

Data sheet?
| Wire type and power | DC 3-wire type 12-24VDC  |
|---|
| Sensing side diameter | M08 |
|---|
| Sensing distance | 1.5mm |
|---|
| Installation | Shield(flush) |
|---|
| Standard sensing target | 8?8?1mm(iron) |
|---|
| Response frequency | 1.5kHz |
|---|
| Current specification | Current consumption: Max. 10mA |
|---|
| Control output | NPN Normally Open |
|---|
| Material | Brass(nickel plated) |
|---|
| Cable Standard/material | Standard cable |
|---|
| Protection structure | IP67 |
|---|
| Approval |  |
|---|
| Body length | Standard type |
|---|
| Environment_Ambient temperature | -25 to 70?? storage: -30 to 80??/td> |
|---|
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
|---|
| Hysteresis(distance) | Max. 10% of sensing distance |
|---|
| Residual voltage | Max. 2V |
|---|
| Weight | Approx. 64g(approx. 52g) |
|---|
??he response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
??he weight includes packaging. The weight in parenthesis is for unit only.
??he temperature or humidity mentioned in Environment indicates a non freezing or condensation.
