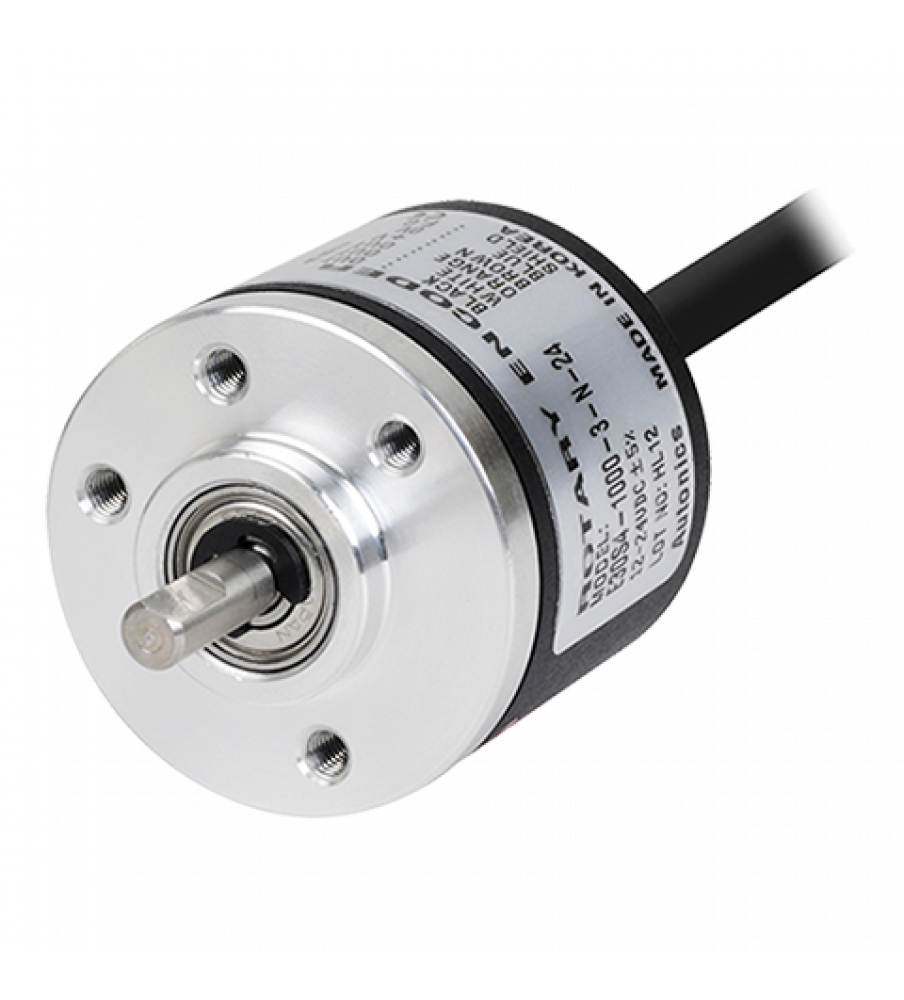

Data sheet?

Shaft outer diameter	?4mm
Max. response frequency	300kHz
Max. allowable revolution	5000rpm
Starting torque	Max. 20gf.cm(max. 0.00196N.m)
Resolution	100P/R
Output phase	A, B, Z
Control output	Voltage
Power supply	5VDC ?5%(ripple P-P: max. 5%)
Connection type	Axial cable type
Protection structure	IP50
Approval
Environment_Ambient temperature	-10 to 70?? storage: -25 to 85??/td>
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 90% RH
Accessories	?4mm coupling
Weight	Approx. 80g

??ake sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution ? 60sec]
??he weight includes packaging. The weight in parenthesis is for unit only.
??nvironment resistance is rated at no freezing or condensation.
