Data sheet?
| Shaft outer diameter | ?4mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 20gf.cm(max. 0.00196N.m) |
| Resolution | 1024P/R |
| Output phase | A,  , B,  , Z,  |
| Control output | Line Driver |
| Power supply | 5VDC  ?5%(ripple P-P: max. 5%) |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70?? storage: -25 to 85??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | ?4mm coupling |
| Weight | Approx. 80g |
??he power of Line driver is only for 5VDC.
??ake sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution ? 60sec]
??he weight includes packaging. The weight in parenthesis is for unit only.
??nvironment resistance is rated at no freezing or condensation.

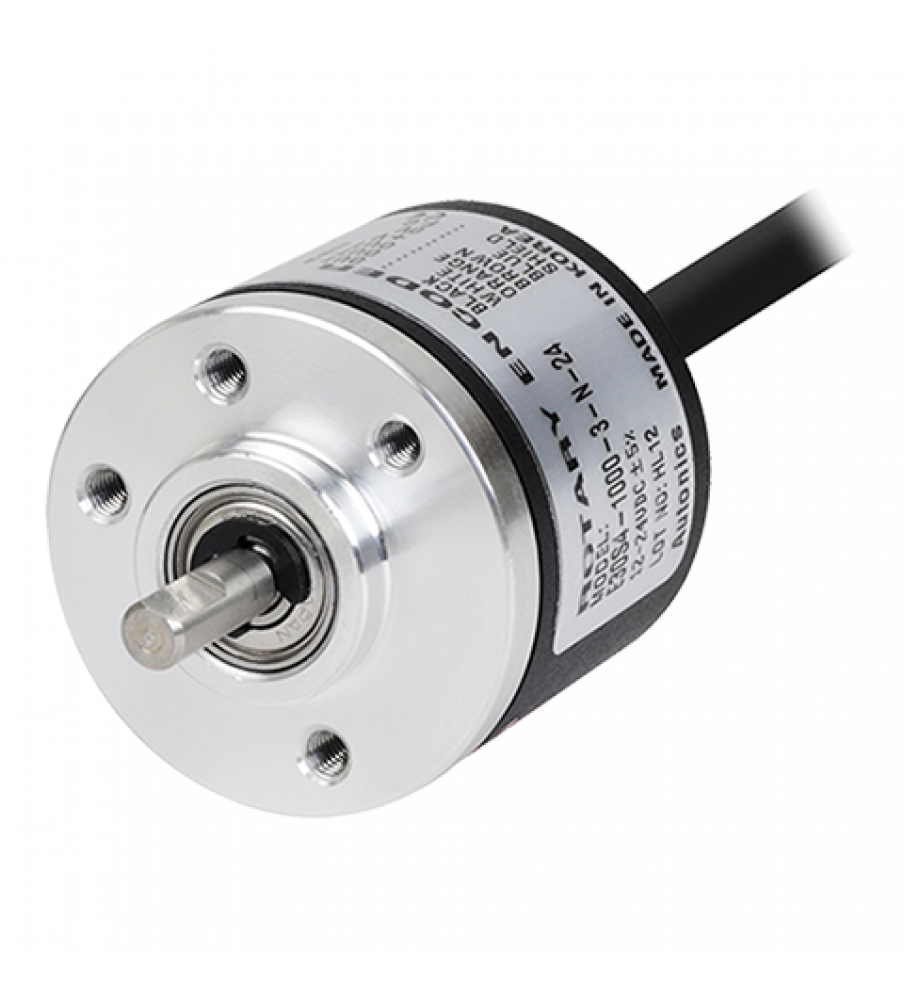

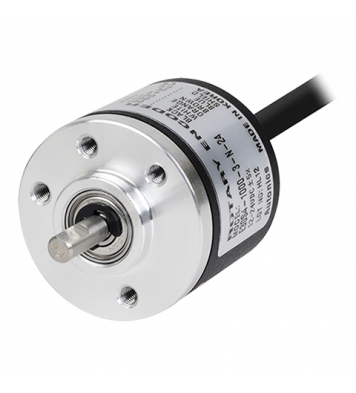

| Rotary Encoder | |
| Type | Incremental |
| Shaft type | 30 mm Shaft |
| Resolution | 1024 |
| Output phase | A,B,Z |
| Control output | Line Driver |
| Power supply | 5VDC |
| Connector type | Cable |
