| Shaft inner diameter | ?10mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 12P/R |
| Output phase | A, B |
| Control output | Totem pole |
| Power supply | 12-24VDC @(=) ?5%(ripple P-P: max. 5%) |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Approval | @(CE) |
| Environment_Ambient temperature | -10 to 70?? storage: -25 to 85??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |

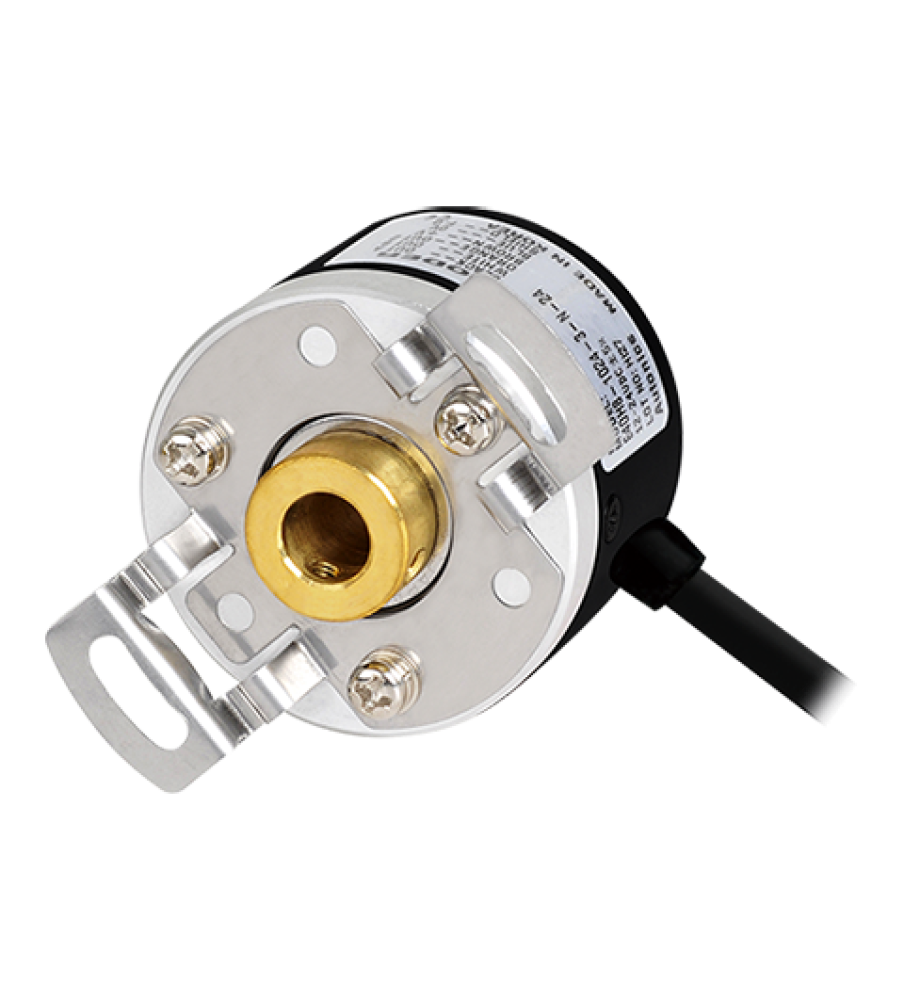

| Rotary Encoder | |
| Type | Incremental |
| Shaft type | 40 mm Hollow shaft |
| Resolution | 12 |
| Output phase | A,B |
| Control output | Totem Pole |
| Power supply | 12-24 VDC andaring;andplusmn;5% |
| Connector type | Cable |
