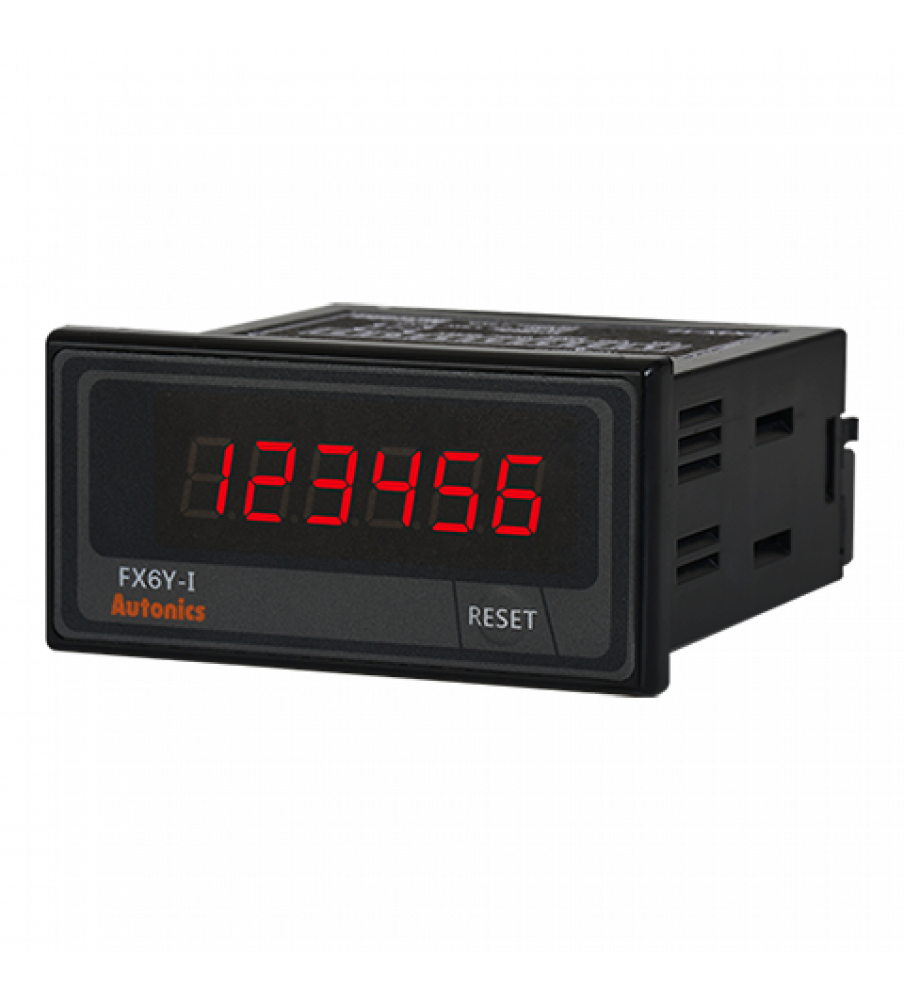

| Display method | 6-digit 7-segment LED |
|---|---|
| Operation method | Counter: Count up, Count down, Count up/downTimer: Count up, Count down |
| Terminal | Terminal block |
| Power supply | 24VAC~ 50/60Hz, 24-48VDC @(=) |
| Time operation | POWER ON START |
| External Power Supply | Max. 12VDC @(=) ?10% 50mA |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Max. Counting Speed | 1, 30, 2k, 5k [cps] |
| Min. signal Width | 20ms |
| Memory Protection | Approx. 10 years |
| Setting range | 0.1 sec to 99999.9 sec, 1 sec to 999999 sec, 0.01 sec to 99 min 59.99 sec, 0.1 sec to 999 min 59.9 sec, 0.1 min to 99999.9 min, 1 sec to 99 hour 59 min 59 sec, 1 min to 9999 hour 59 min, 0.1 hour to 99999.9 hour |
| Control output_Type | Indicator |
| Protection structure | IP40(front panel) |
| Approval | @(CE) @(CULUS) |
| Environment_Ambient temperature | -10 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 175g (approx. 120g) |
Tags: Counter & Timer, W72XH36mm, 6 Digit, LED, Indicator, (N)24-48VDC/24VAC
