Data sheet?
| Network | Modbus |
|---|---|
| Type | Digital |
| Number Of I/Os_Output | 8-point (PNP) |
| I/O specification | Voltage: 10-28VDC (voltage drop: max. 0.5V) Current: 0.3A/point (leakage current: max. 0.5mA) |
| Module type | Basic unit |
| Power supply | 24VDC  |
| Protection structure | IP20 |
| Approval |  |
| Insulation type | I/O and inner circuit: photocoupler insulation Modbus to internal bus and inner circuit: insulation Unit power: non-insulation |
| Material | Front case: PC, Body case: PC |
| Environment_Ambient temperature | -10 to 55?? storage: -25 to 75??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 123.3g (approx. 61.8g) |

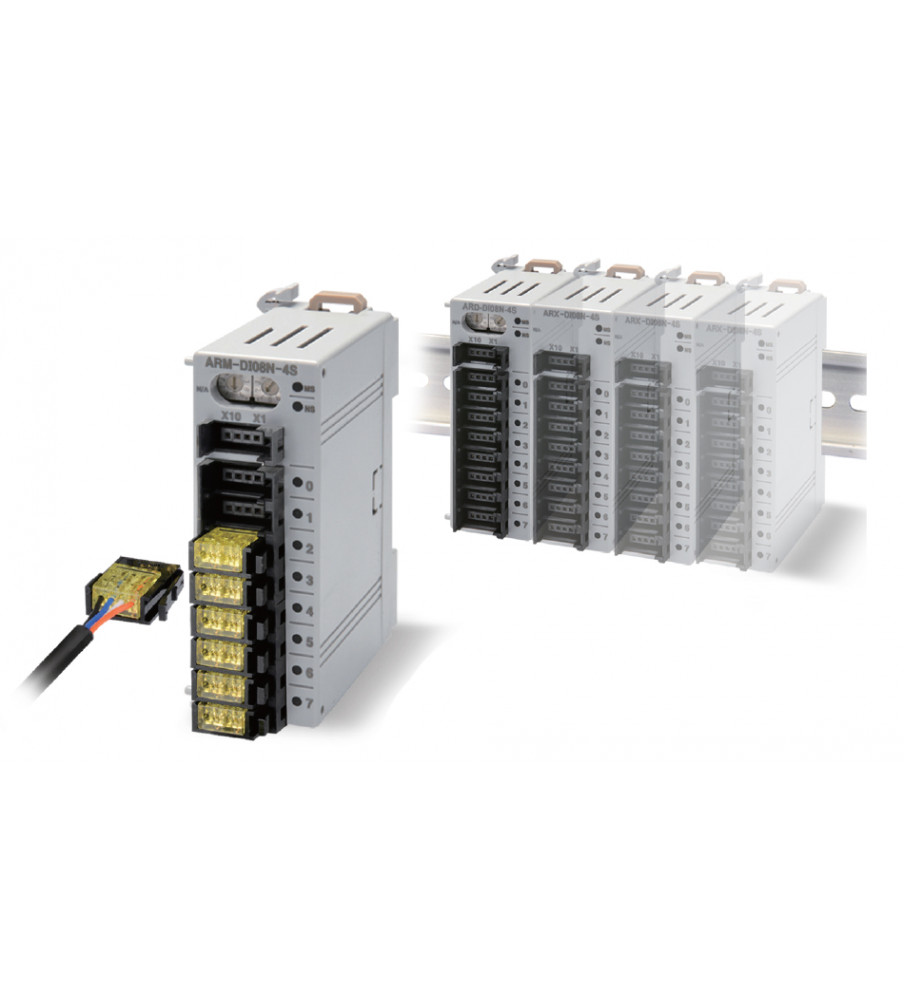

??xpansion units (ARX-D?????4S) of ARM Series (digital, sensor connector type) are available to order separately.
??his weight is with packaging and the weight in parentheses is only unit weight.
??nvironment resistance is rated at no freezing or condensation.
| Field Networks | |
| Type | Sensor Connector |
| Basic/Expansion Unit | Basic unit |
| Digital/Analog | Digital type |
| I/O type | Output type |
| I/O Points | 8 |
| I/O specification | PNP |
| Dimensions | W31 x H81.8 X L58 mm |
| Power Supply | 12 - 24 VDC |
