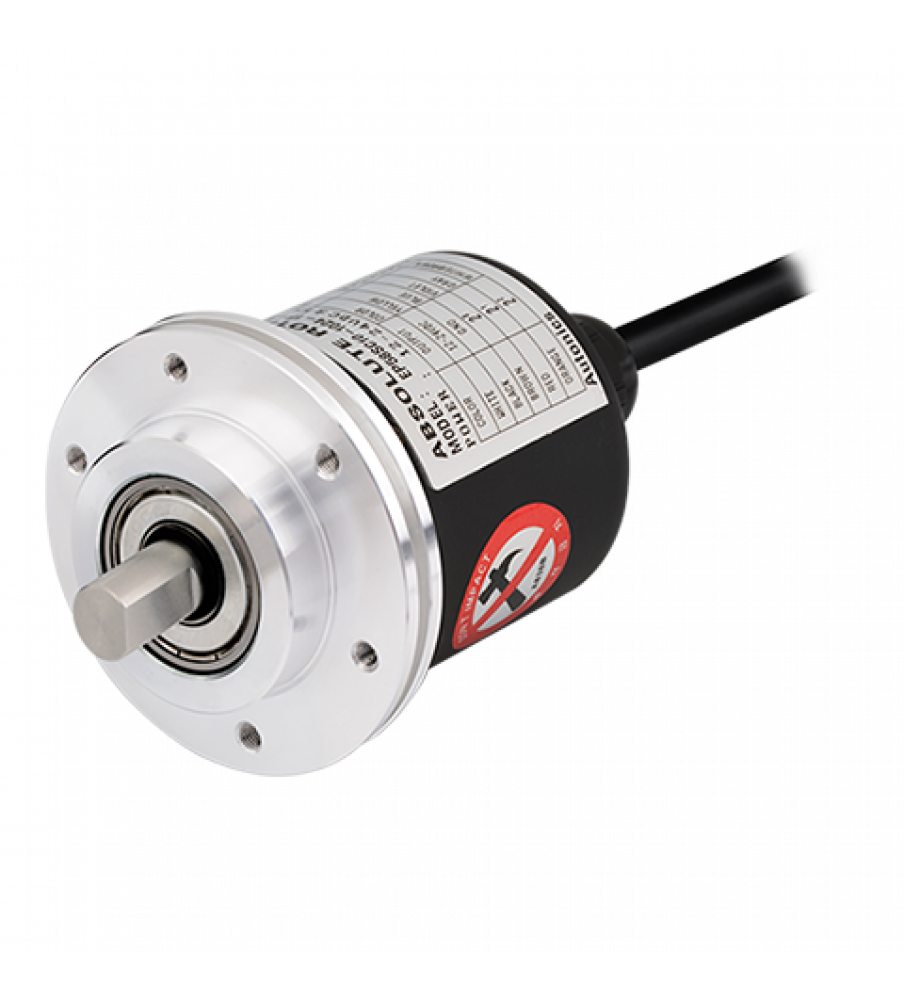

Encoder, Absolute, 58mm Body, 10mm Shaft, 256 Divisions Per Rev, Gray Code, NPN Output, CW Increase, 12-24 VDC
| Rotary Encoder | |
| Type | Absolute (Single-turn) |
| Shaft type | 58 mm Shaft (Clamping) |
| Resolution | 256 |
| Control output | NPN |
| Power supply | 12-24 VDC andaring;andplusmn;5% |
| Connector type | Cable |
| Rotating Direction | CW |
