| Shaft outer diameter | ?10mm |
|---|---|
| Max. response frequency | 35kHz |
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 40gf.cm(max. 0.00392N.m) |
| Resolution | 720P/R |
| Output code | Gray Code |
| Rotating direction | CCW |
| Control output | PNP open collector |
| Power supply | 5VDC @(=) ?5%(ripple P-P: max. 5%) |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Approval | @(CE) |
| Environment_Ambient temperature | -10 to 70?? storage: -25 to 85??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | ?10mm coupling, Fixing bracket |
| Weight | Approx. 435g |

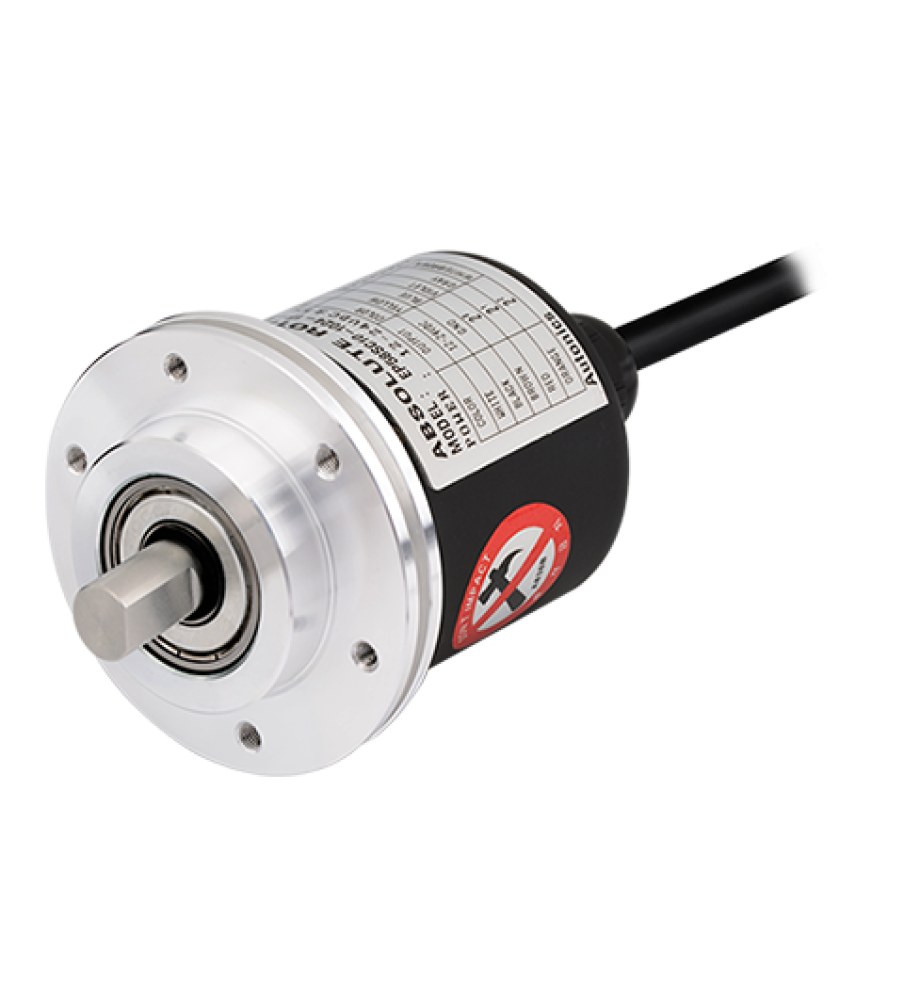

| Rotary Encoder | |
| Type | Absolute (Single-turn) |
| Shaft type | 58 mm Shaft (Clamping) |
| Resolution | 720 |
| Output phase | GRAY |
| Control output | PNP |
| Power supply | 5VDC andaring;andplusmn;5% |
| Connector type | Cable |
| Rotating Direction | CCW |
