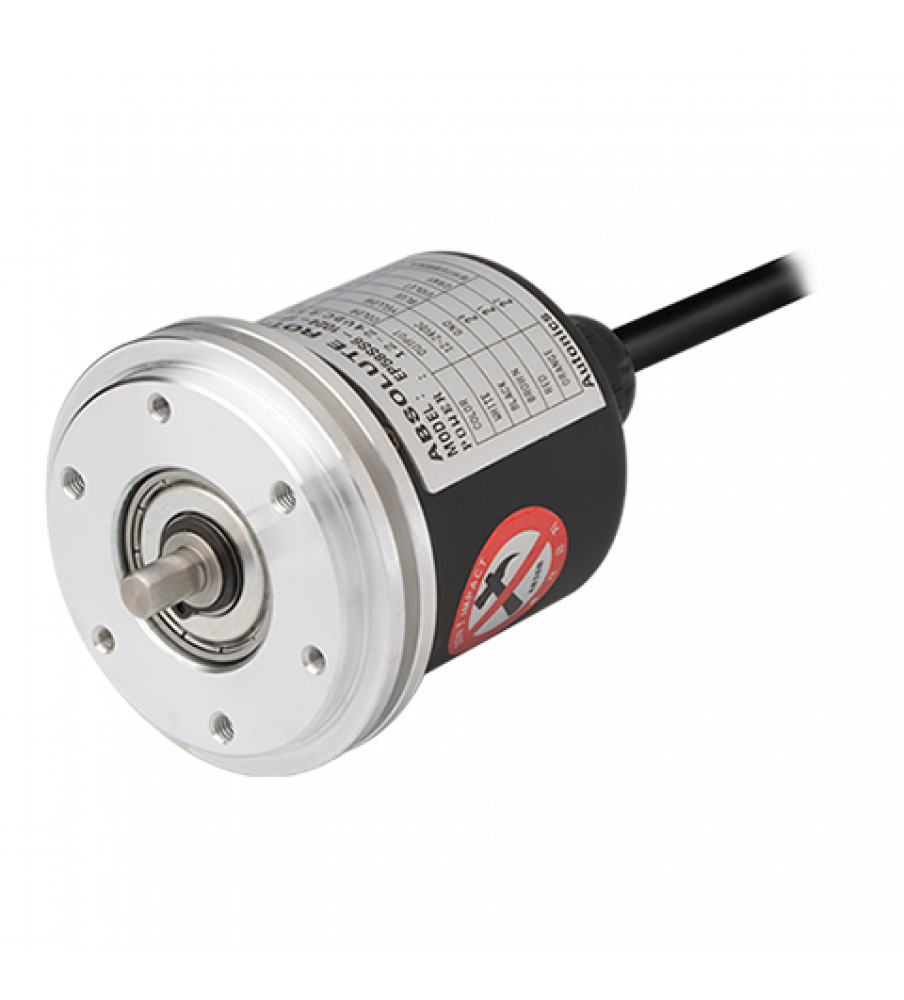

Encoder, Incremental, ?58mm, 10mm Shaft synchro, 256 PPR, Gray code, Output value increases at CW direction, PNP, 12-24VDC
| Rotary Encoder | |
| Type | Absolute (Single-turn) |
| Shaft type | 58 mm Shaft (Synchro) |
| Resolution | 256 |
| Output phase | GRAY |
| Control output | NPN |
| Power supply | 12-24 VDC andaring;andplusmn;5% |
| Connector type | Cable |
| Rotating Direction | CW |
