Data sheet?
| Type | Standard type(bolt type) |
|---|
| Sensing distance | 400mm |
|---|
| Min. sensing target | ?0.6mm |
|---|
| Allowable bend radius | R5 |
|---|
| Cable length | 2m |
|---|
| Free cut | Free cut |
|---|
| Environment_Ambient temperature | -40 to 60??/td> |
|---|
| Sensing type | Through-beam type |
|---|
??he sensing distance is a standard for BF5 Series.
??in. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.
??lexible optical fiber (Multi core): A large number of ultra-fine cores are all surrounded by cladding. Easy to install it in the many places as the change of the intensity of radiation by bending is small.
Break-resistant optical fiber: The fiber units contain a large number of independent fine fibers, by ensuring a high degree of flexibility. It can be used for moving parts (robot hand) and it is not easily broken.
??ree cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]

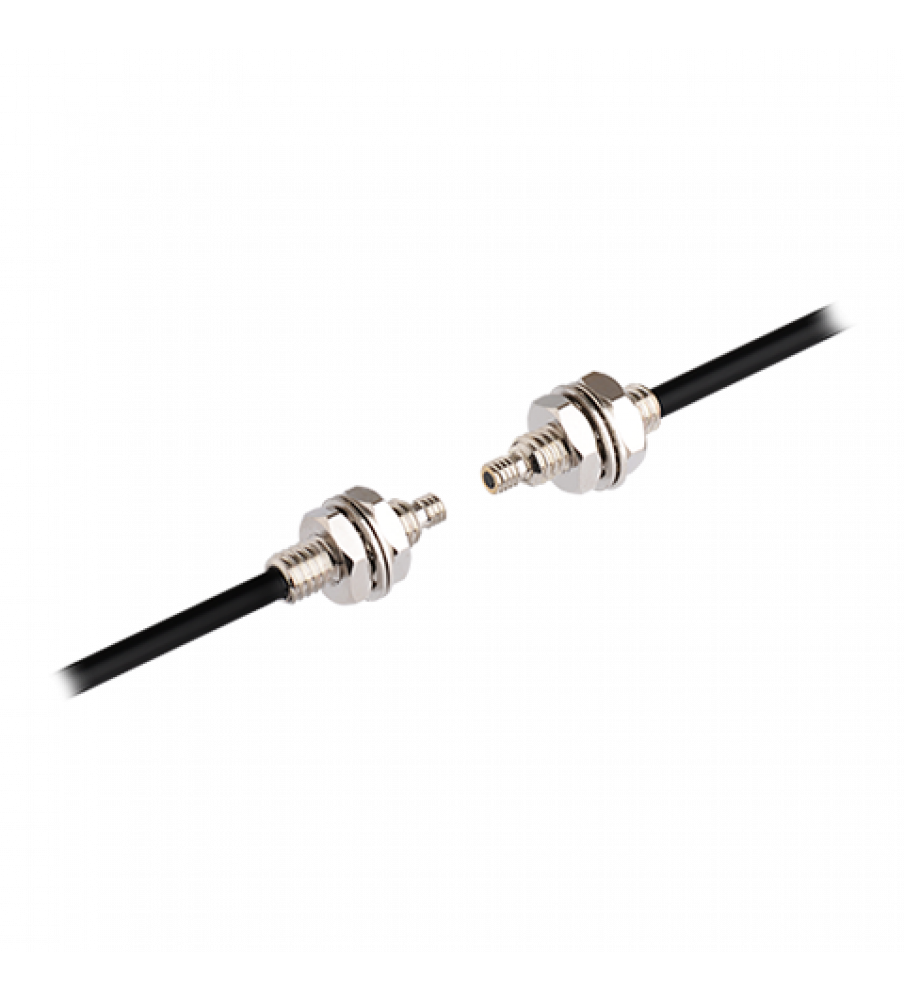

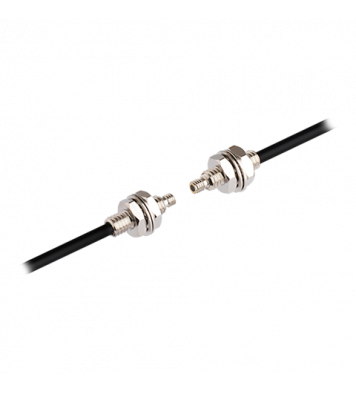

??T-420-13 was discontinued. FT-420-13B is replacement.
??lass type is for BF5, BF4 Series.
